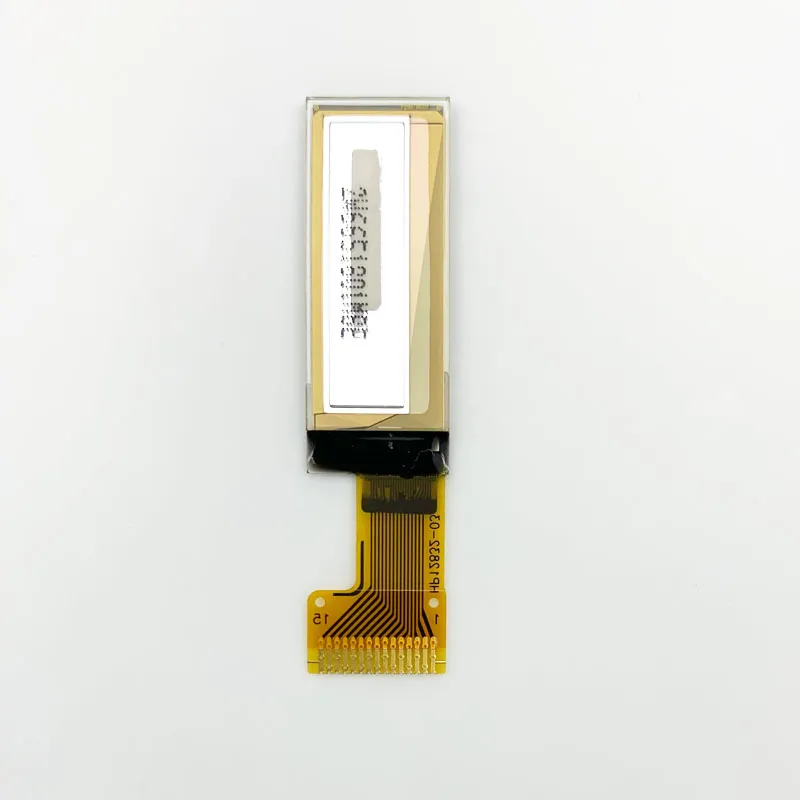

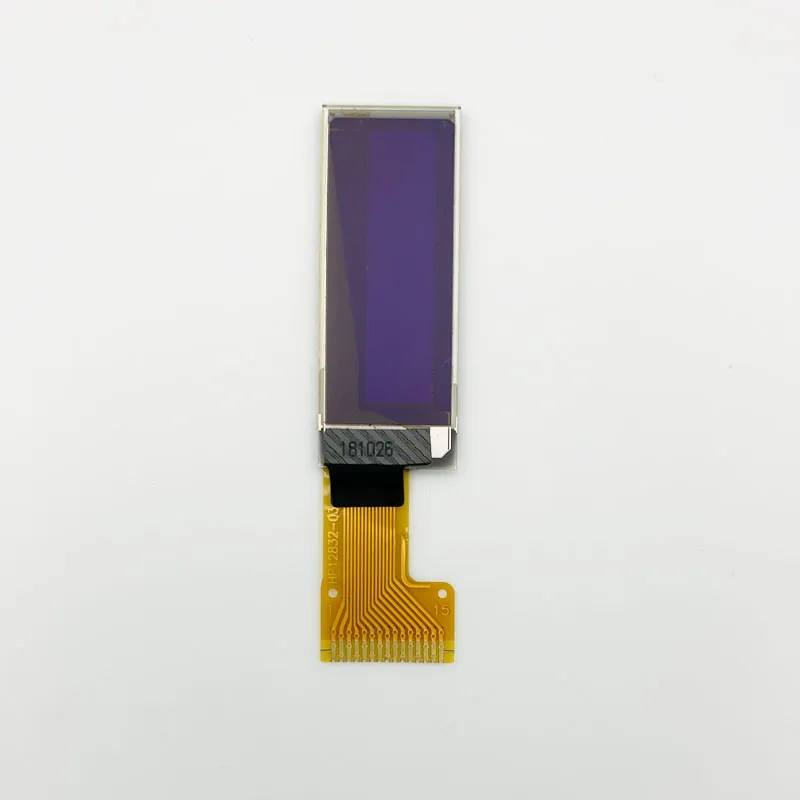

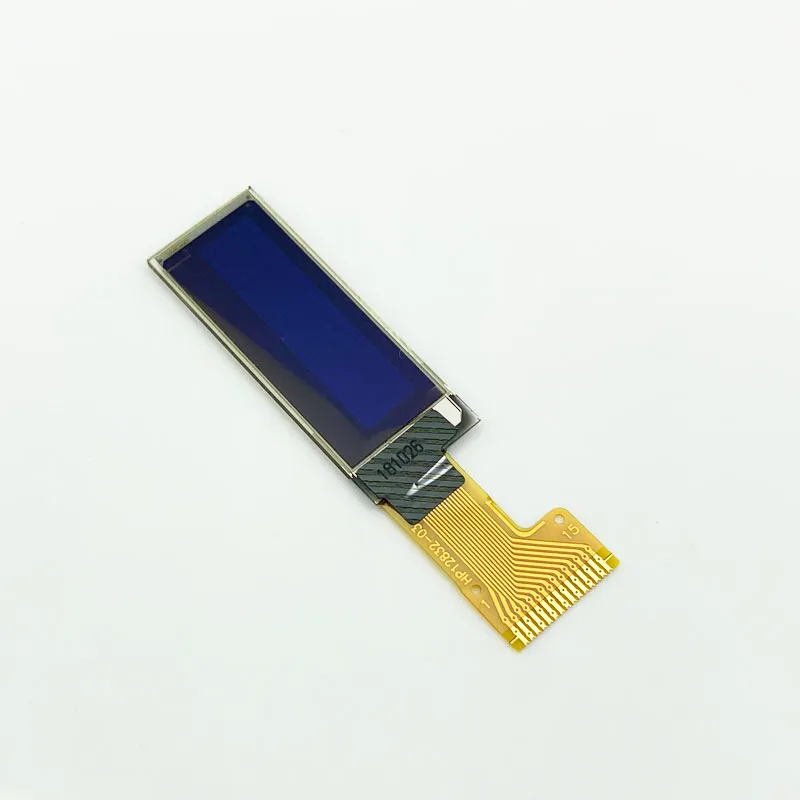

SSD1306 Controller Chip 0.91 Inch White OLED Display Module Iic I2c 128X32 15pin for Coffee Machine
All kinds of LCD Display or Module can customized! We can offer you:1) Character lcd module: 8x2, 16x2, 20x2, 20x4 etc...2) Round lcd module: 128x64, 128x128,132x64, etc...3) TFT lcd display: 1.3'',1.77", 1.8", 2.0", 2.4", 2.8", 3", 3.2", 3.5", 4&quo......
Send Inquiry
Product Description
All kinds of LCD Display or Module can customized! We can offer you:
1) Character lcd module: 8x2, 16x2, 20x2, 20x4 etc...
2) Round lcd module: 128x64, 128x128,132x64, etc...
3) TFT lcd display: 1.3'',1.77", 1.8", 2.0", 2.4", 2.8", 3", 3.2", 3.5", 4", 4.3", 4.8'',5", 7", etc...
4) TN/STN/FSTN/HTN/VA segment customized lcd LED backlight panel, etc...
| Product name | 0.91" oled display |
| Module size | 30.0(W)x11.5(H)x1.227(D) |
| Dot size | 0.159(W) x0.159(H) |
| Dot pitch | 0.175(W) x0.175 (H) |
| Aperture rate | 82.50% |
| Viewing angle | 160° |
| Assy.type | COG |
| Weight | TBD |
| Operation temp. | -40~70ºC |
| Storage temp. | -40~85ºC |
| TFT LCDs | Part No. | Resolution | Outline Dimension | AA | Size | Interface | Driver IC | View Direction |
| SCT018005-V01 | 128RGB*160 | 34.00*45.83*2.75 | 28.032*35.040 | 1.8'' | 8bit MCU | ILI9163V | 12 o'clock | |
| SCT020007-V02 | 176RGB*220 | 37.68*51.30*2.23 | 35.30*46.45 | 2'' | 8bit MCU | ST7775R | 6 o'clock | |
| SCT024001-V02 | 480RGB*234 | 55.20*47.55*2.80 | 48.00*35.68 | 2.4'' | 8bit RGB | OTA5182A | 6 o'clock | |
| SCT024015-V01 | 240RGB*320 | 42.72*60.26*2.30 | 36.72*48.96 | 2.4'' | 4-line SPI | HX8347-I | 12 o'clock | |
| SCT024019-V02 | 240RGB*320 | 52.31*31.53*0.13 | 36.72*48.96 | 2.4'' | SPI | ST7789V | IPS/All | |
| SCT028008-V02 | 240RGB*320 | 50.00*69.20*3.8 | 44.60*59.00 | 2.8'' | MCU/RGB | ILI9341 | 6 o'clock | |
| SCT032003-V01 | 240RGB*320 | 55.04*77.70*2.40 | 49.4*65.60 | 3.2'' | 16bit MCU | ST7789V | 12 o'clock | |
| SCT035001-V04 | 320RGB*240 | 76.90*63.90*3.27 | 70.08*52.56 | 3.5'' | 24bit RGB | HX8238-D | 12 o'clock | |
| SCT040001-V01 | 480RGB*800 | 56.94*97.10*1.16 | 51.84*86.40 | 4'' Touch Panel | IPC | NT35510 | IPS/All | |
| SCT043005-V01 | 480RGB*800 | 69.06*104.50.1.7 | 94.80*57.36 | 4.3'' | Mipi-2CH | ST7701 | IPS/All | |
| SCT050002-V03 | 240RGB*320 | 120.7*75.8*4.15 | 108.00×64.80 | 5''Touch Panel | 24bit RGB | FT5216 | IPS/All | |
| SCT070002-V01 | 800RGB*480 | 165.00*104.0*6.5 | 153.6*86.64 | 7''Touch Panel | 24bit RGB | LVDS | 6 o'clock | |
| All can customized!(resolution, size, interface, driver IC, view direction) | ||||||||
| More… Please email us for a quotation | ||||||||
RFQ
Q: What is the MOQ?
A: Generally if you choose the different products, our minimum order qty also will be different.
Q: What about the delivery time?
A: The LCD products need 5-6 weeks to be made after receive deposit.
Q: Does your product have any warranty?
A: Yes, we offer 12 months warranty for our products. Damage due to misuse, ill treatment and unauthorized modifications and repairs are not covered by our warranty.
Q: What's your payment method?
A: We usually accept the payment methods include T/T, D/P, Western Union and Paypal. 50-100% deposit in advance and balance before shipping upon the payment amount.
Q: What's your shipping method?
A: We provide comprehensive shipping methods.Display
For small quantity orders we ship by UPS Air-Express,or DHL/FEDEX/TNT/EMS Express service, it is safe and fast.
For large quantity orders we ship by buyer's cargo agent in China, we can also ship by Air transportation or sea transportation.
Q: Do you offer custom solution?
A: Yes,we can offer custom solution if standard products couldn't meet buyer' requirements.
