BS 1868 Flanged End Stainless Steel SS304 High Pressure Swing Check Valve
1.Description RODEO can offer almost full range of this series product. For easy site maintenance services.Carbon Steel Swing Check Valve Supplier, Offers Api, Ansi Standards Cast Carbon Steel Flanged High pressure S Swing Check Valves,Non Return Valves, Bolted Cover And Prssure Seal Bonnet For Size......
Send Inquiry
Product Description
1.Description
RODEO can offer almost full range of this series product. For easy site maintenance services.
Carbon Steel Swing Check Valve Supplier, Offers Api, Ansi Standards Cast Carbon Steel Flanged High pressure S Swing Check Valves,
Non Return Valves, Bolted Cover And Prssure Seal Bonnet For Size 2in to 24in, Pressure Rating Class150Lbs to 2500Lbs.2.Specification
3. Datasheet
4.Detailed photo
5.Advantages
1,With 19 years experience of valves.
2,Each valve has 18 months guarantee period
3,2 times test pressure before valve leave factory.
4,We serve OEM customers from more than 54 countries.
5,Small qty is ok.
6,SGS audited.
7,ISO certificate.
6. Part of Factory
7. Production Process & Packaging & Shipping
Call our sales department with any questions that you have about our valves. You may also email us.
As a global valve manufacturer andsupplier, we are committed to the highest industry standards and client satisfaction.
RODEO can offer almost full range of this series product. For easy site maintenance services.
Carbon Steel Swing Check Valve Supplier, Offers Api, Ansi Standards Cast Carbon Steel Flanged High pressure S Swing Check Valves,
Non Return Valves, Bolted Cover And Prssure Seal Bonnet For Size 2in to 24in, Pressure Rating Class150Lbs to 2500Lbs.
2.Specification
Bolted cover,swing type disc
Threaded or welded seat ring
ASTM A216 WCB,A217 WC6,A351CF8,A351CF8M,
A351 CF3,A351 CF3M,A351 CN7M
| Disc | sit in when fully open |
| Test and inspection | API598, API6D |
| Butt welded end | ANSI B16.25 |
| Design and Manufacture | ANSI B16.34, API6D, BS1868 |
| Face to face | ANSI B16.10, API6D |
| Flanged connection | 2"~24" to ANSI B16.5 22", 26"~36" to MSS-SP-44 to API605 on request |

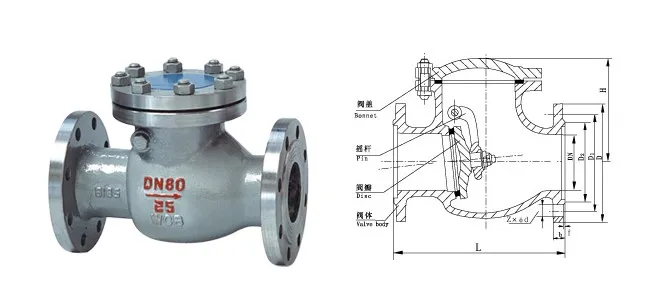

3. Datasheet
| TYPE | SIZE(mm) | DIMENSION | |||||||
| H44H/W/Y-600LB | Inch | DN | L | D | D1 | D2 | b | Z-Φd | H |
| 2″ | 50 | 292 | 165 | 127 | 92 | 26 | 8-Φ19 | 190 | |
| 2½″ | 65 | 330 | 190.5 | 149.4 | 104.7 | 29 | 8-Φ22 | 210 | |
| 3″ | 80 | 356 | 210 | 168.2 | 127 | 32 | 8-Φ22 | 230 | |
| 4″ | 100 | 432 | 273 | 216 | 157 | 38 | 8-Φ25 | 300 | |
| 5″ | 125 | 508 | 330 | 266.7 | 185.7 | 45 | 8-Φ29 | 310 | |
| 6″ | 150 | 559 | 356 | 292 | 216 | 48 | 12-Φ29 | 370 | |
| 8″ | 200 | 660 | 419 | 349 | 270 | 56 | 12-Φ32 | 450 | |
| 10″ | 250 | 787 | 508 | 432 | 324 | 64 | 16-Φ35 | 500 | |
| 12″ | 300 | 838 | 559 | 489 | 381 | 67 | 20-Φ35 | 570 | |
| 14″ | 350 | 889 | 603 | 527 | 413 | 70 | 20-Φ38 | 640 | |
| 16″ | 400 | 991 | 686 | 603 | 470 | 77 | 20-Φ41 | 670 | |
| 18″ | 450 | 1092 | 743 | 654 | 533.4 | 83 | 20-Φ44 | 710 | |
| 20″ | 500 | 1194 | 855 | 724 | 584 | 89 | 24-Φ44 | 760 | |
| 24″ | 600 | 1397 | 1040 | 838 | 692 | 102 | 24-Φ52 | 830 | |

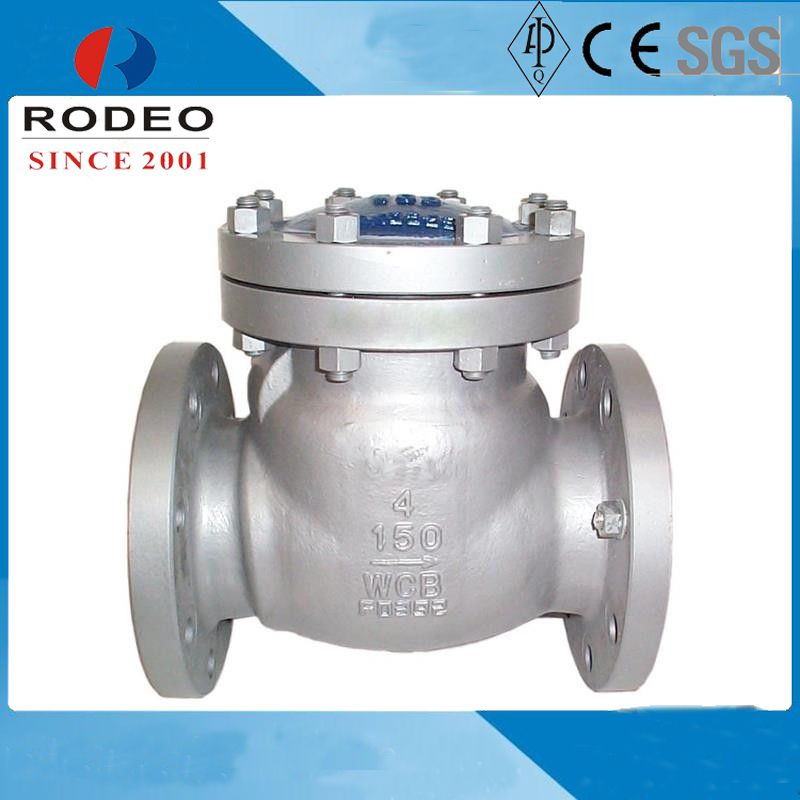

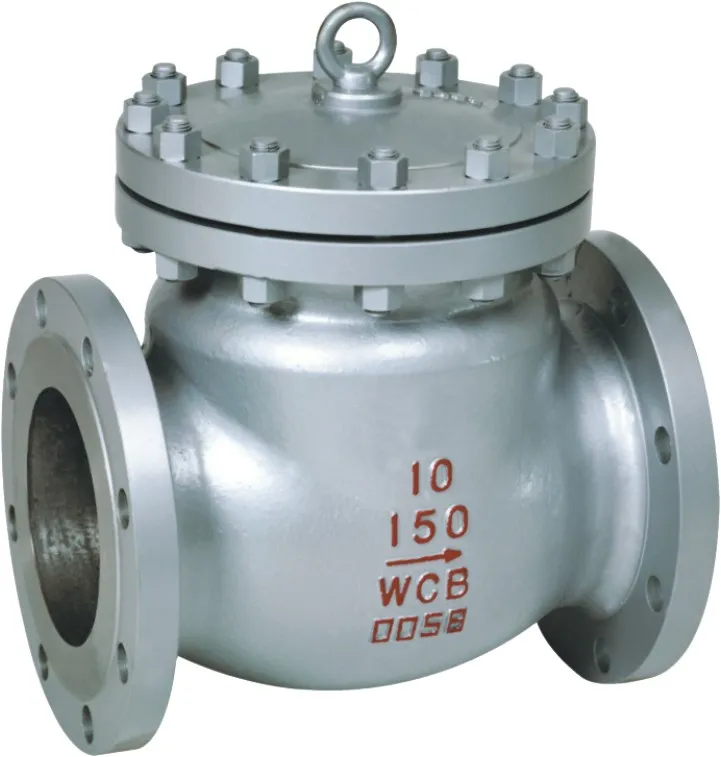

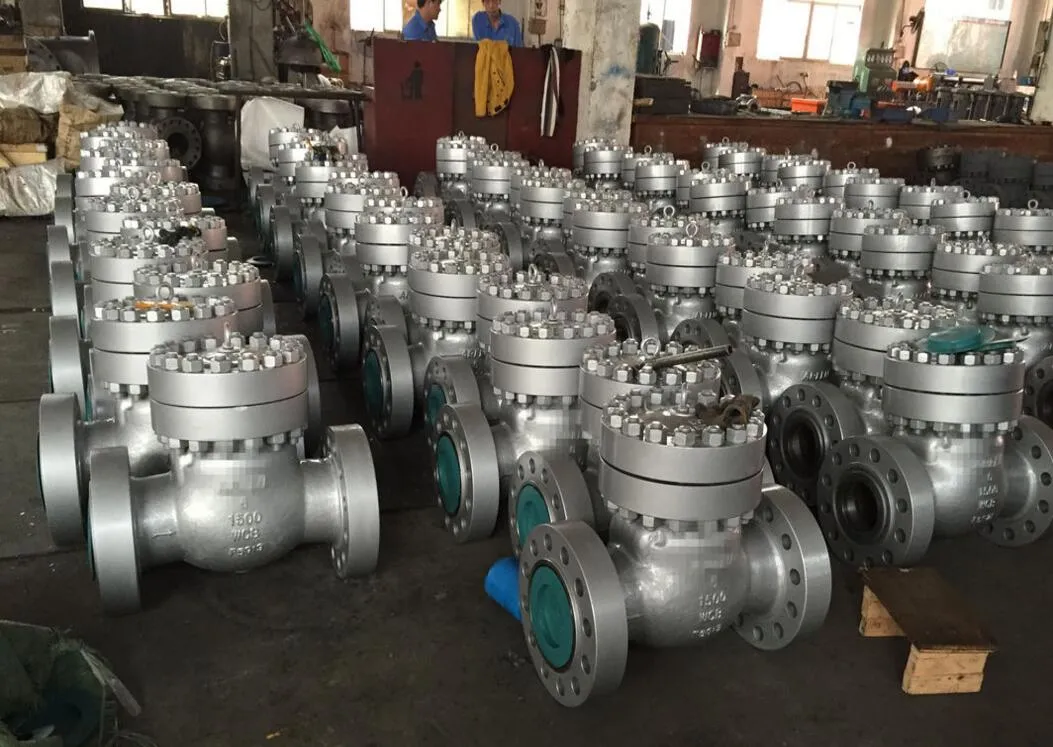

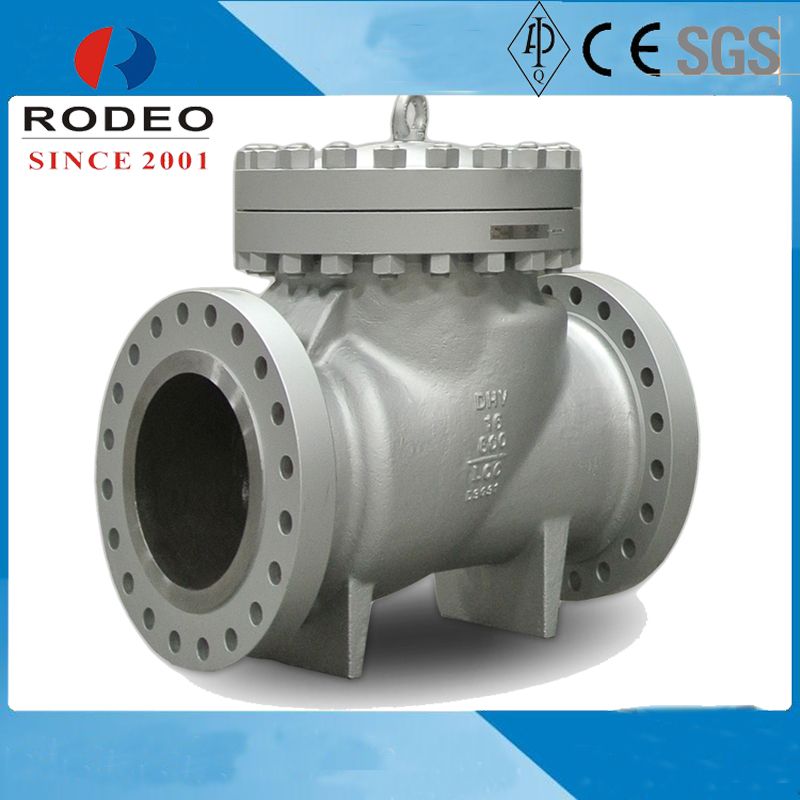

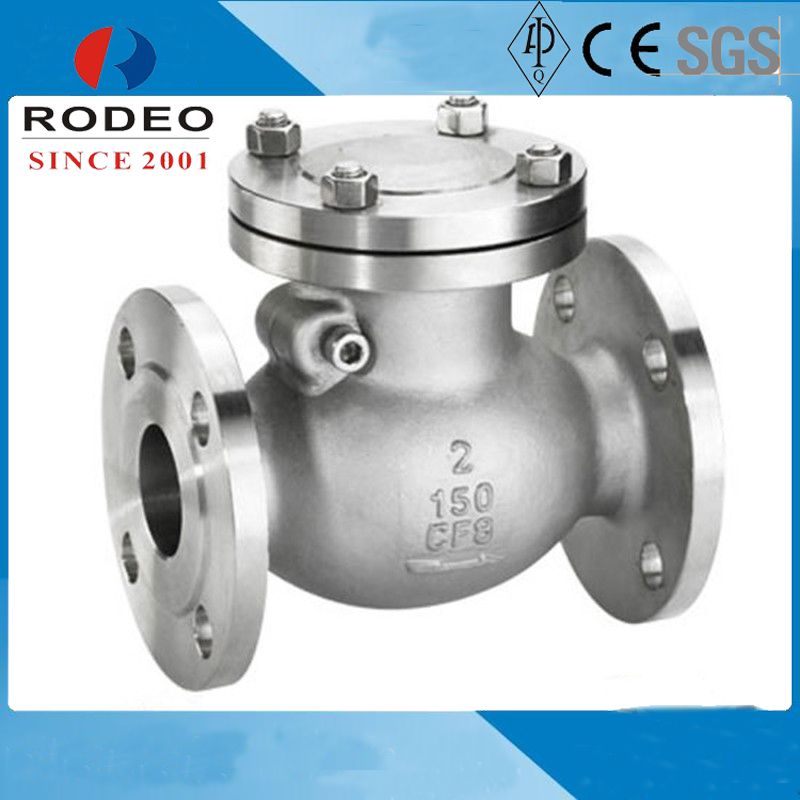

4.Detailed photo
5.Advantages
1,With 19 years experience of valves.
2,Each valve has 18 months guarantee period
3,2 times test pressure before valve leave factory.
4,We serve OEM customers from more than 54 countries.
5,Small qty is ok.
6,SGS audited.
7,ISO certificate.

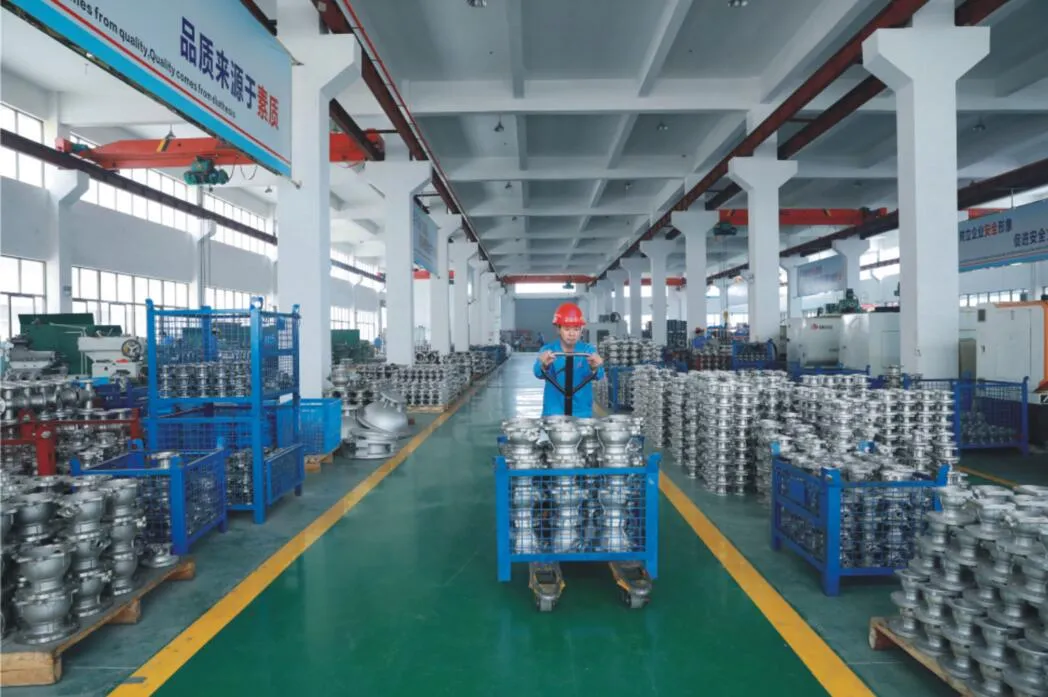

6. Part of Factory
7. Production Process & Packaging & Shipping
Call our sales department with any questions that you have about our valves. You may also email us.
As a global valve manufacturer andsupplier, we are committed to the highest industry standards and client satisfaction.
