High Pressure H44 BS 1868 API Stellite Trim Bolted Cover Non Return Flanged Connection Piston Swing Check Valve

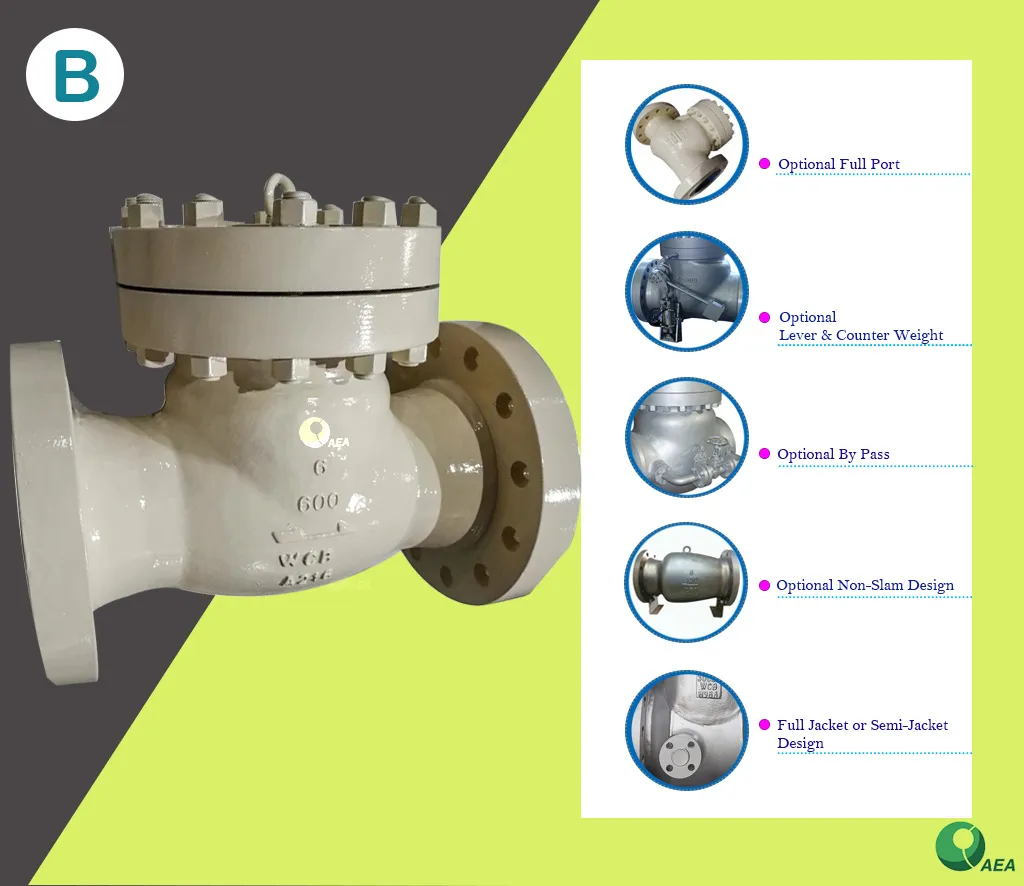

AEA Cast Steel Swing Check Valve is used to prevent back flow in the line. Flow is in a line through the valve resulting in minimal pressure drop. The disc swings into the open position as the media flows through the line. Back pressure in the line holds the disc in the closed position. Swing check ......

Send Inquiry

Product Description

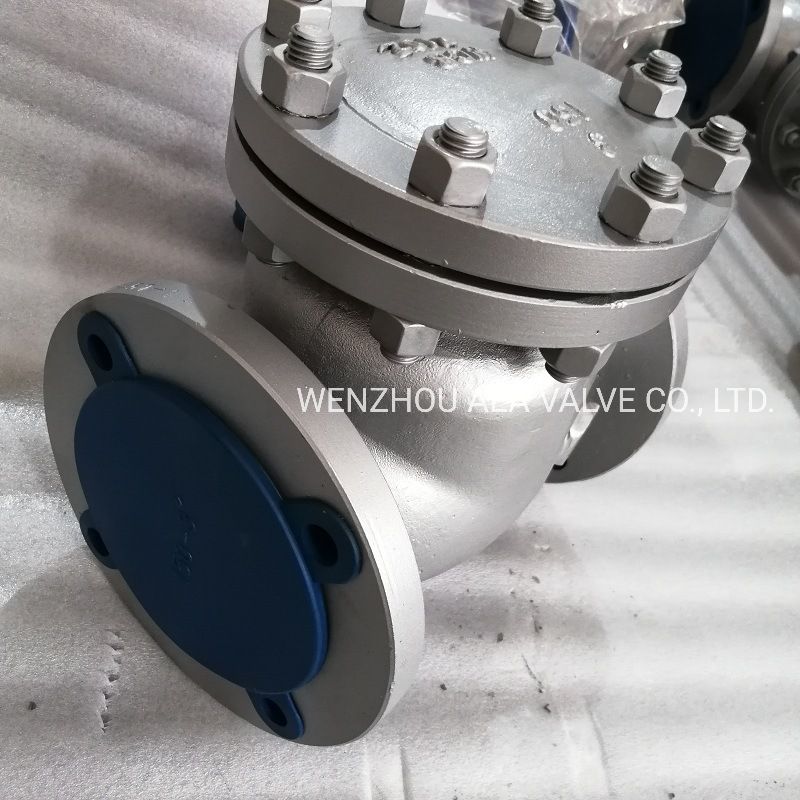

High Pressure H44 BS 1868 API Stellite Trim Bolted Cover Non Return Flanged Connection Piston Swing Check Valve

AEA Cast Steel Swing Check Valve is used to prevent back flow in the line. Flow is in a line through the valve resulting in minimal pressure drop. The disc swings into the open position as the media flows through the line. Back pressure in the line holds the disc in the closed position. Swing check valves may be installed in horizontal or vertical lines, but must be installed in proper relation to the media flow as indicated by the flow direction arrow marked on the body.

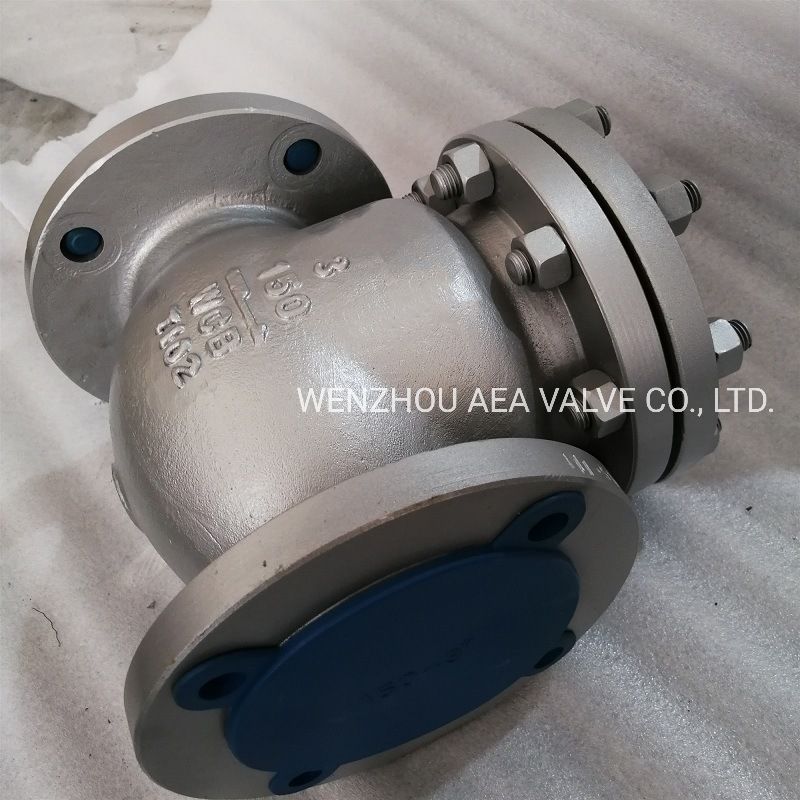

High Pressure H44 BS 1868 API Stellite Trim Bolted Cover Non Return Flanged Connection Piston Swing Check Valve
Product Range
-Valve size:
2" ~ 40" (DN50-DN1000)
-Pressure:
ANSI CL150-2500LBS
-Temperature:
-196ºC~ 500ºC
-Body Materials:
Carbon Steel, Stainless Steel, Alloy Steel, Duplex Steel
-Trim (Disc/Stem):
Carbon Steel, Stainless Steel, Duplex Steel, Alloy Steel

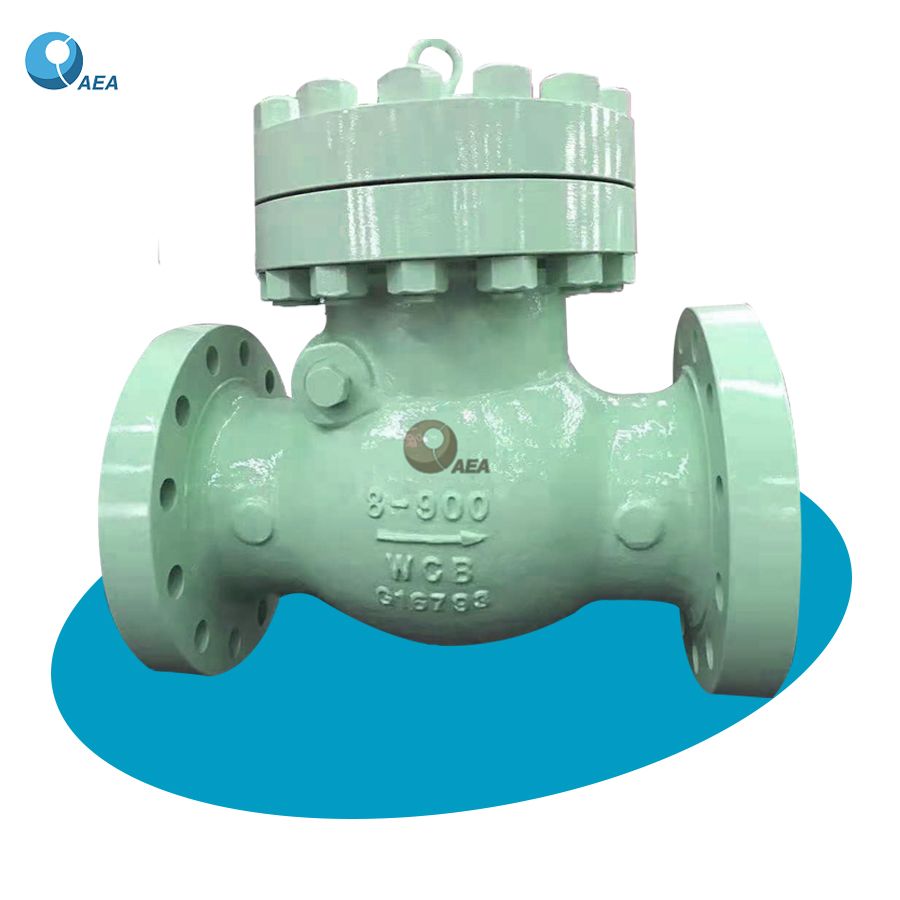

High Pressure H44 BS 1868 API Stellite Trim Bolted Cover Non Return Flanged Connection Piston Swing Check Valve

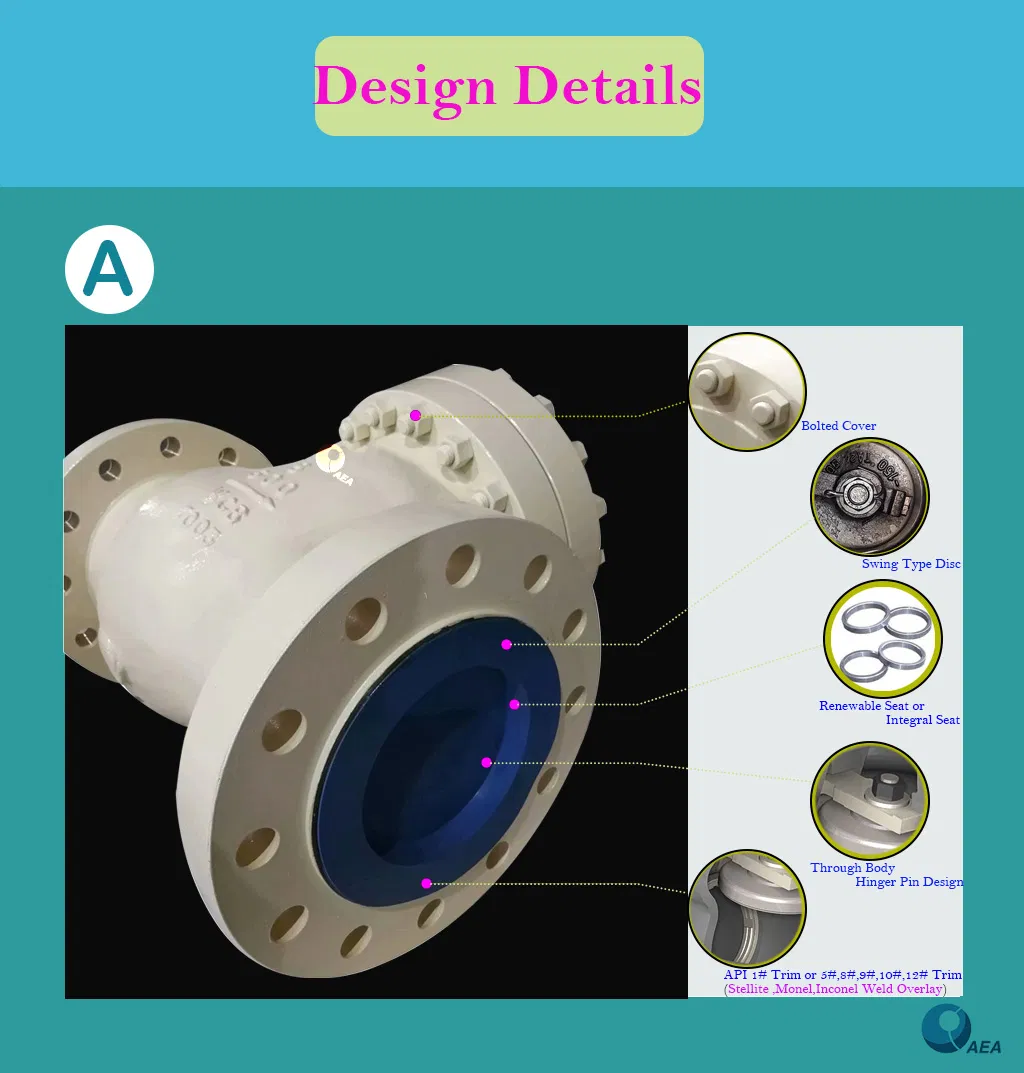

Design Features
Check Valve design complies to BS 1868 and API 594
Offered with API monogram
Fugitive Emissions - Complies with ISO 15848-1 (<50 ppm="" />Compliance to Annex III Module H of Pressure Equipment Directive 2014/68/EU
Check valves successfully tested to Shell 77/300 and witnessed by Shell Inspectors

High Pressure H44 BS 1868 API Stellite Trim Bolted Cover Non Return Flanged Connection Piston Swing Check ValveHigh Pressure H44 BS 1868 API Stellite Trim Bolted Cover Non Return Flanged Connection Piston Swing Check Valve
Addition Value:
Internal hinge design, no hole in the body, eliminates leakage path
Inconel overlay/ cladded option available
High Pressure H44 BS 1868 API Stellite Trim Bolted Cover Non Return Flanged Connection Piston Swing Check Valve
Size and Dimensions:
ClassDimensions(mm)
NPS(inch)22-1/23456810121416182024283236
DN(mm)5065801001251502002503003504004505006007008001000
150LBL2032162412923303564956226987878649789781295144817271955
H16517519021524026532036541546049555059065083810161092
300LBL26729231835640044453362271183886497810161346149917272083
H19020522024527029533042048053558561568578588910161143
600LBL2923303564325085596607878388899911092119413971600--
H2102302552953353654205055456006507358009651066--
900LBL368419381457559610737838965102911301219132115492032--
H22524025427936038153355860973676286393910661193--
1500LBL36841947054667370583299111301257138415371664----
H26524030334038043050060578583095010801145----
2500LBL451508578673794914102212701422--------
H285305350410490540620705855--------
High Pressure H44 BS 1868 API Stellite Trim Bolted Cover Non Return Flanged Connection Piston Swing Check ValveHigh Pressure H44 BS 1868 API Stellite Trim Bolted Cover Non Return Flanged Connection Piston Swing Check Valve
High Pressure H44 BS 1868 API Stellite Trim Bolted Cover Non Return Flanged Connection Piston Swing Check ValveHigh Pressure H44 BS 1868 API Stellite Trim Bolted Cover Non Return Flanged Connection Piston Swing Check ValveHigh Pressure H44 BS 1868 API Stellite Trim Bolted Cover Non Return Flanged Connection Piston Swing Check Valve
