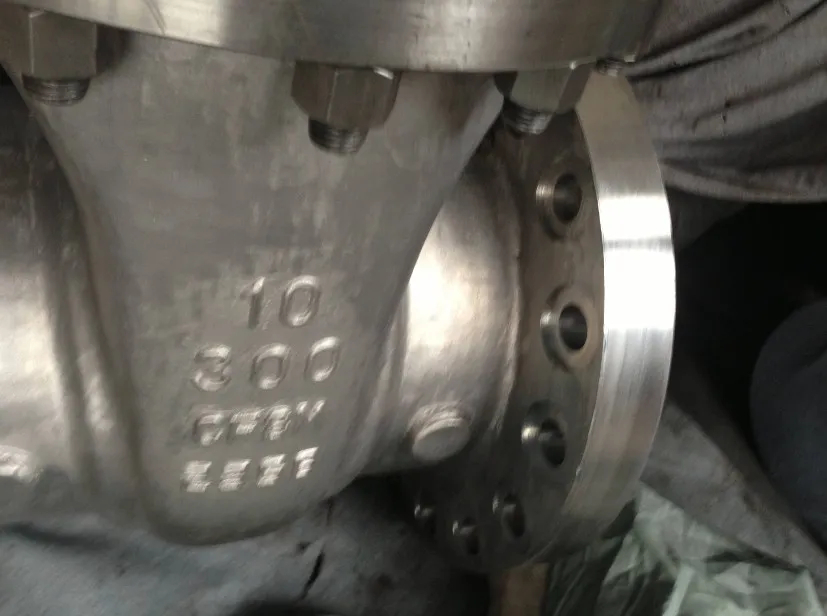

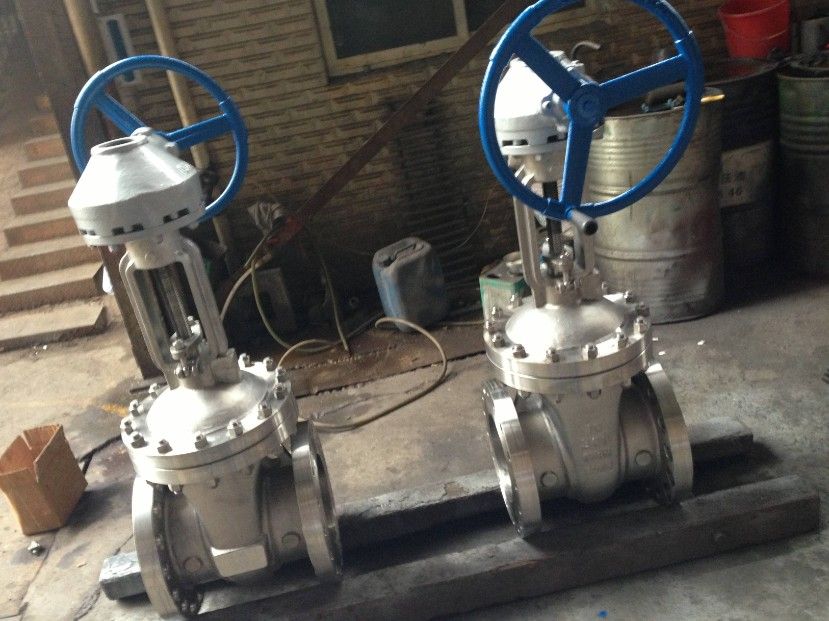

A216 Wcb Gate Valves

Product Description

Check Valve Applicable Standards:

Design & Manufacture according to : BS 1868

Face to Face according to : ASME B16.10

Flange Dimensions according to : ASME B16.5

Pressure & Temperature according to : ASME B16.34

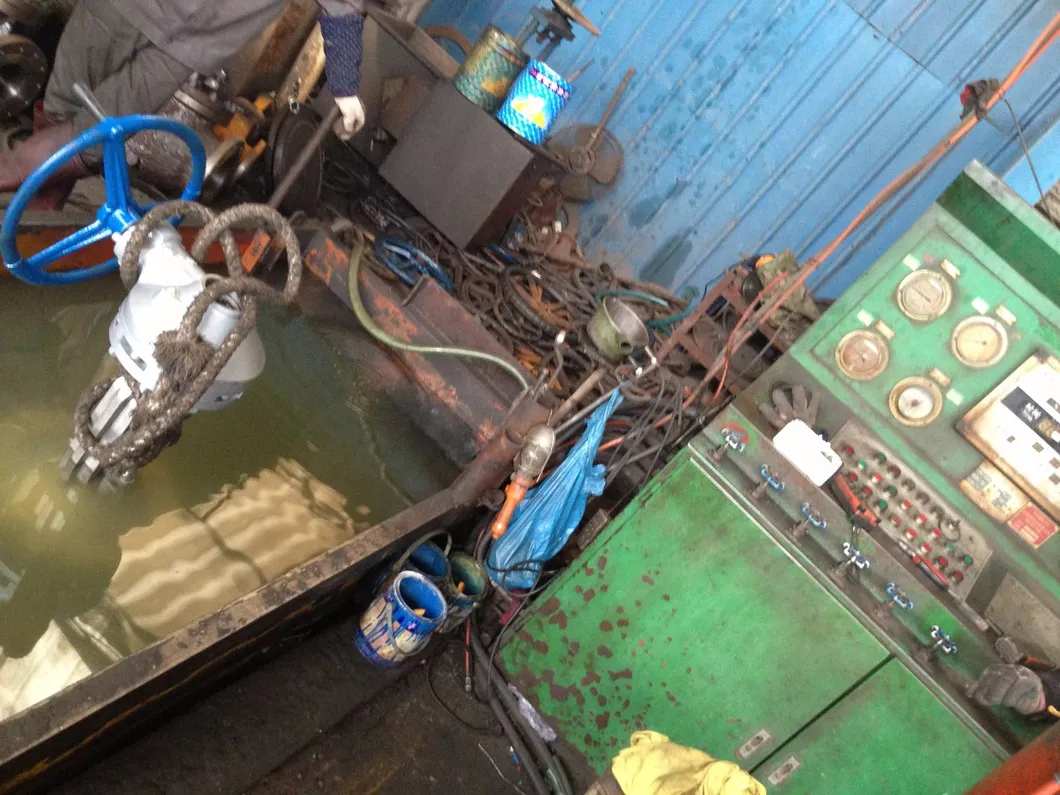

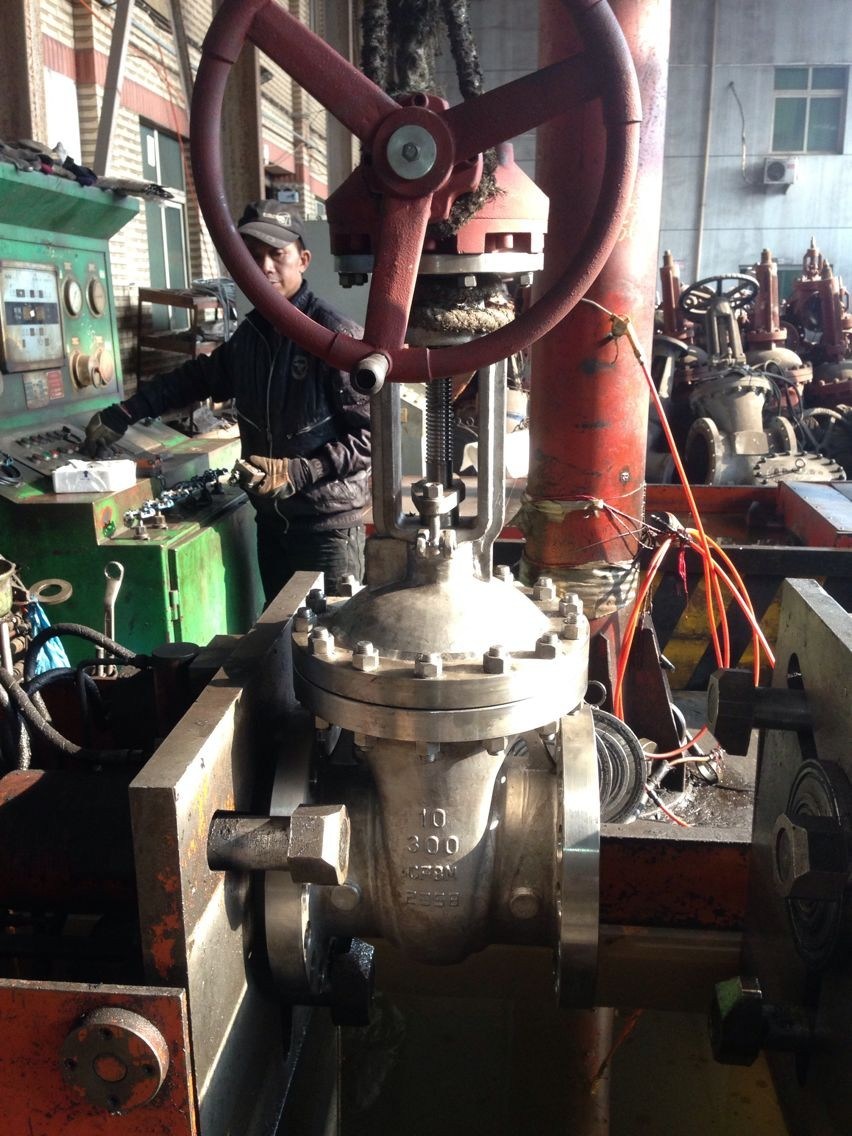

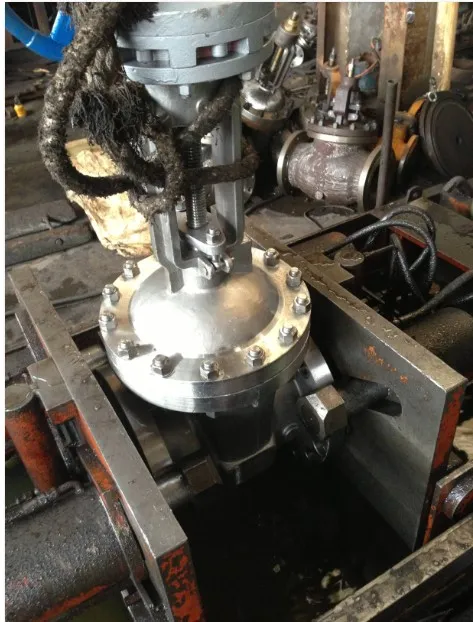

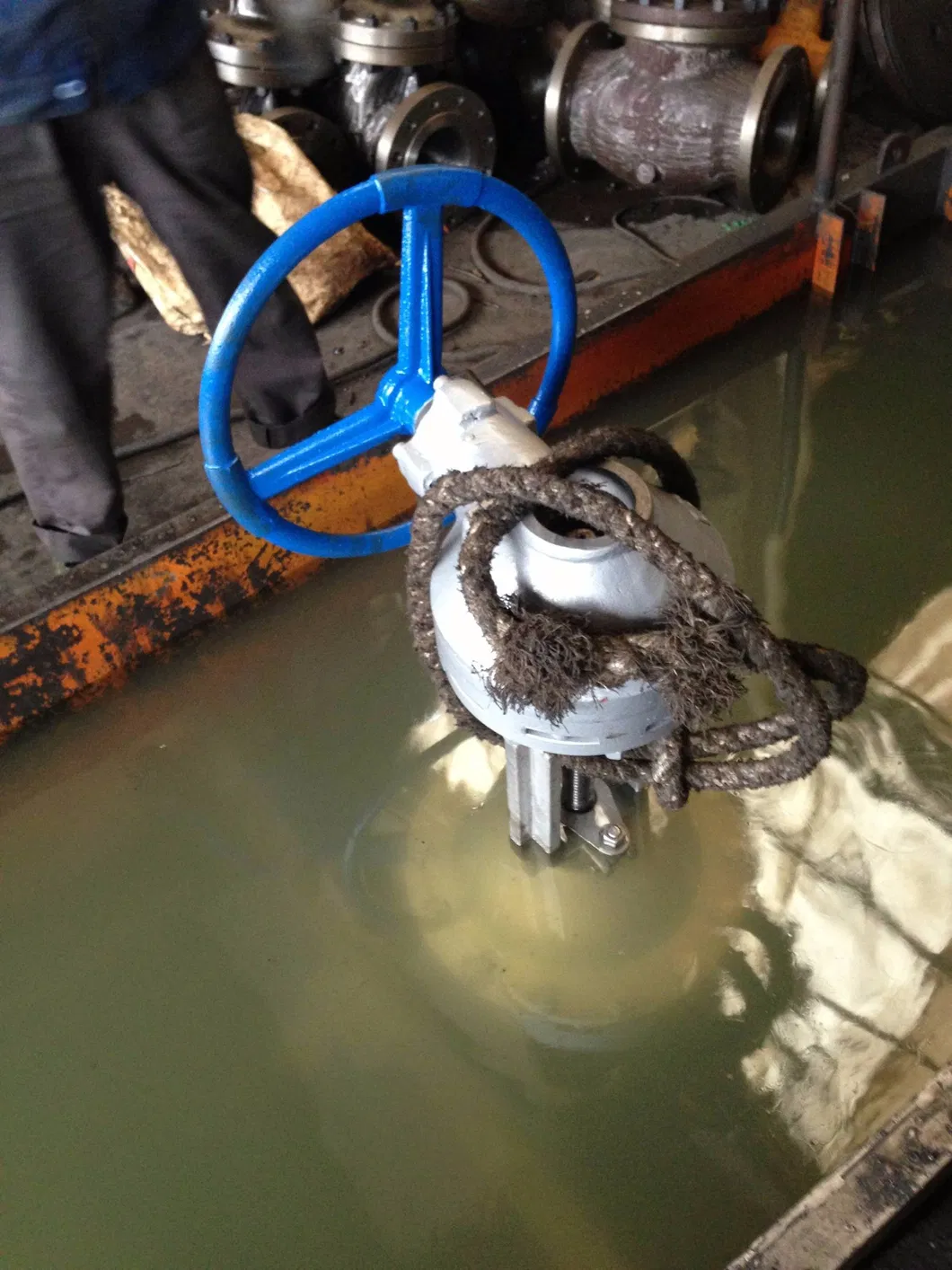

Test & Inspection according to : API 6D / API 598

Visual Inspection according to : MSS SP-55

Marking according to : MSS SP-25

Check Valve Detail Information:

Name	China supplier cast steel A216 Gr. WCB 24 inch API 6D pressure seal bonnet swing check valve price
Standard or Nonstandard:	BS 1868
Structure:	API 6D pressure seal bonnet swing check valve
Pressure:	1500LB
Power:	Drive by medium
Material:	cast steel A216 Gr. WCB
Temperature of Media:	-29 Deg. C ~ 200 Deg. C
Media:	Crude Oil, Natural Gas, etc
Port Size:	24 inch
Application:	Oil and Gas
Special Requirement:	Tailor made can be provided
Description:	API 6D pressure seal bonnet swing check valve
Wall thickness:	ASME B16.34
NDE available:	Radio graphic, PT, MT
Sour gas service:	NACE MR 0175
Color:	Silver, Blue
Painting:	Epxoy Primer
Pressure temperature rating:	ASME B16.34

Check Valve Material Option:

Carbon steel	A216 Gr. WCB , WCC , WCA , etc
Low temperature steel	A352 Gr. LCB , LCC , LC1 , etc
Cr-Mo steel	A217 Gr. WC6 , WC9 , C5 , C12 , C12A , etc
Stainless Steel	A351 Gr. CF8 , CF8M , CF3 , CF3M , CF8C , etc
Alloy steel	CN7M alloy 20 , CN3M alloy 20 modified , CT15C , etc
Super duplex	A995 Gr. 4A , 5A , CE8MN , CD6MN , CD3MN , etc
Aluminum bronze	B148 C95500 , C95600 , C95800 , etc
Monel	M30C , M35-1 , CZ100 , etc
Inconel	CY40 inconel 600 , etc
Hastelloy	CW2m Hastelly C4 , N12MV Hastelloy B , CW12MW Hastelloy C276 , etc
Incoloy	CU5MCuC Incoloy 825 , CW6MC Incoloy 625 , etc
