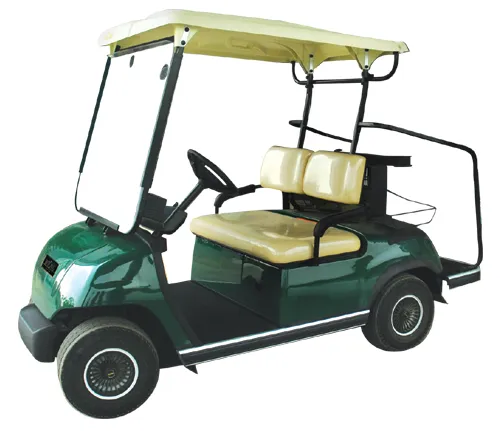

2 Person Electric Mini Golf Car

Product Description

2 Seater Electric Golf Car
Electric vehicle product description

1. Motor: US ADC brand
2. Controller: US CurTis1266
3. Battery:Trojan
4. Stable quality, little noise, anti-fatigue and long durability
5. There is oil seal which can bear high temperature, therefore it can prevent the transaxle from oil leakage
2 Person Electric Mini Golf Car

Electric system	controller		1266/275A
	battery		trojan battery 8V 6 units
	motor		KDS48V/3.7KW motor
	charger		Computer Intelligent input 220V/110V ourput 48V 20A
Charging time			Less than 12 hours discharging rate 80%
Body configuration		Glass	PC glass	Sun Roof	ABS Vacuum forming
		seat	leather	Floor	Autiskid rubber floor
		Rear mirror	Handoperated, both side	Steering	Dual automotive-style strut and self-adjust rack-and pinion steering
		DC/Light/Signal	48V/12V-300W Front lightturning light rear light horn Buzzer
		Body	PP Vacuum forming
		Dash Board	PP Vacuum forming Voltage Indicator 48V Switch Head Lights Switch - Indicators Right/Left key switch Switch - Forward/Reverse
		Braking system	Rear drum brake+compound pedal brake
		Front axle and suspension	Independent suspension helical spring +cylinder hydraulic shock absorption
		Rear axle and suspension	Integral type transaxle, gear ratio 12.31: 1, semi-independent transaxle, spring, cylinder hydraulic shock absorption
		Tire diameter	452mm
Parameter		Lengthwidthheight	238012001850mm
		Loading passenger	2
		Max speed km/h	24km/h
		Mileage /km	90_ 100km flat road
		Max climbing ability	30%
		Mini turning radium m	3.4m
		Mini ground clearance	110mm
		Wheel base	Front 930/back 1010mm
		Braking distance	4.2M
