China 4 Person Electric Golf Buggy Use in Golf Course (HX-A2 2)

Product Description

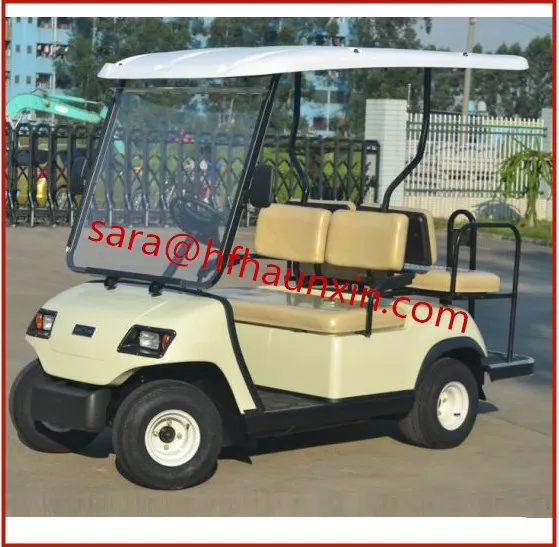

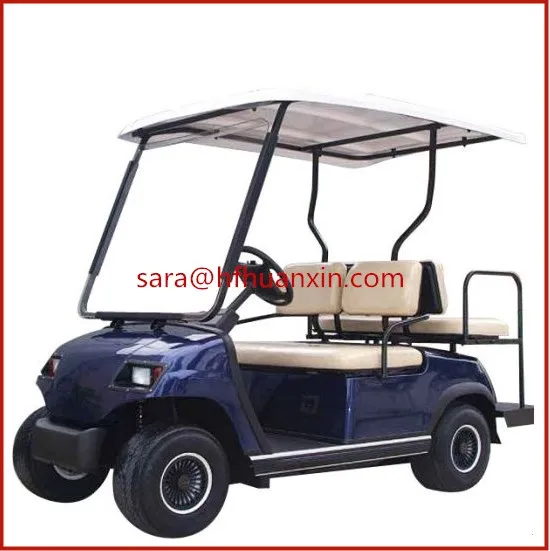

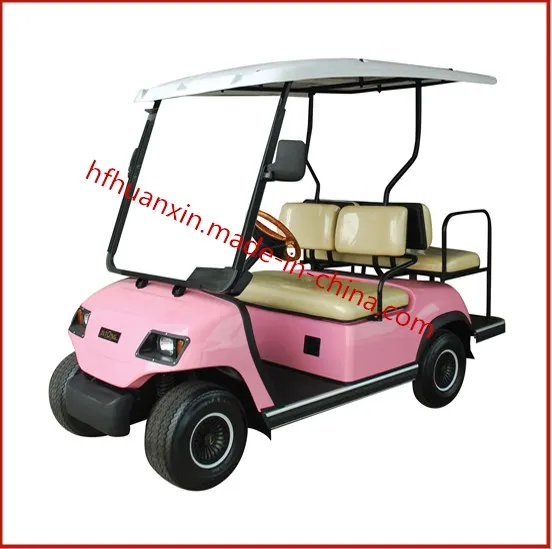

4 Person Electric Golf Buggy Use in Golf Course (HX-A2+2)

Product Description

Electric vehicle product description

1. Motor: US ADC brand
1.1 Originally imported from USA
1.2 3.7KW output makes strong torque and stable performance
1.3 Temperature resista

2. Controller: US Curtis1266
3. Battery: Trojan
4. Stable quality, little noise, anti-fatigue and long durability;
5. There is oil seal which can bear high temperature, therefore it can prevent the transaxle from oil leakage.

Electric system	controller	1266/275A
	battery	trojan battery 8V 6 units
	motor	KDS48V/3.7KW motor
	charger	Computer Intelligent input 220V/110V ourput 48V 20A
Charging time		Less than 12 hours discharging rate 80%
Body configuration	Glass	PC glass	Sun Roof	ABS Vacuum forming
	seat	leather	Floor	Autiskid rubber floor
	Rear mirror	Handoperated, both side	Steering	Dual automotive-style strut and self-adjust rack-and pinion steering
	DC/Light/Signal	48V/12V-300W Front light turning light rear light horn Buzzer
	Body	PP Vacuum forming
	Dash Board	PP Vacuum forming Voltage Indicator 48V Switch Head Lights Switch - Indicators Right/Left key switch Switch - Forward/Reverse
	Braking system	Rear drum brake+compound pedal brake
	Front axle and suspension	Independent suspension helical spring +cylinder hydraulic shock absorption
	Rear axle and suspension	Integral type transaxle, gear ratio 12.31: 1, semi-independent transaxle, spring, cylinder hydraulic shock absorption
	Tire diameter	452mm

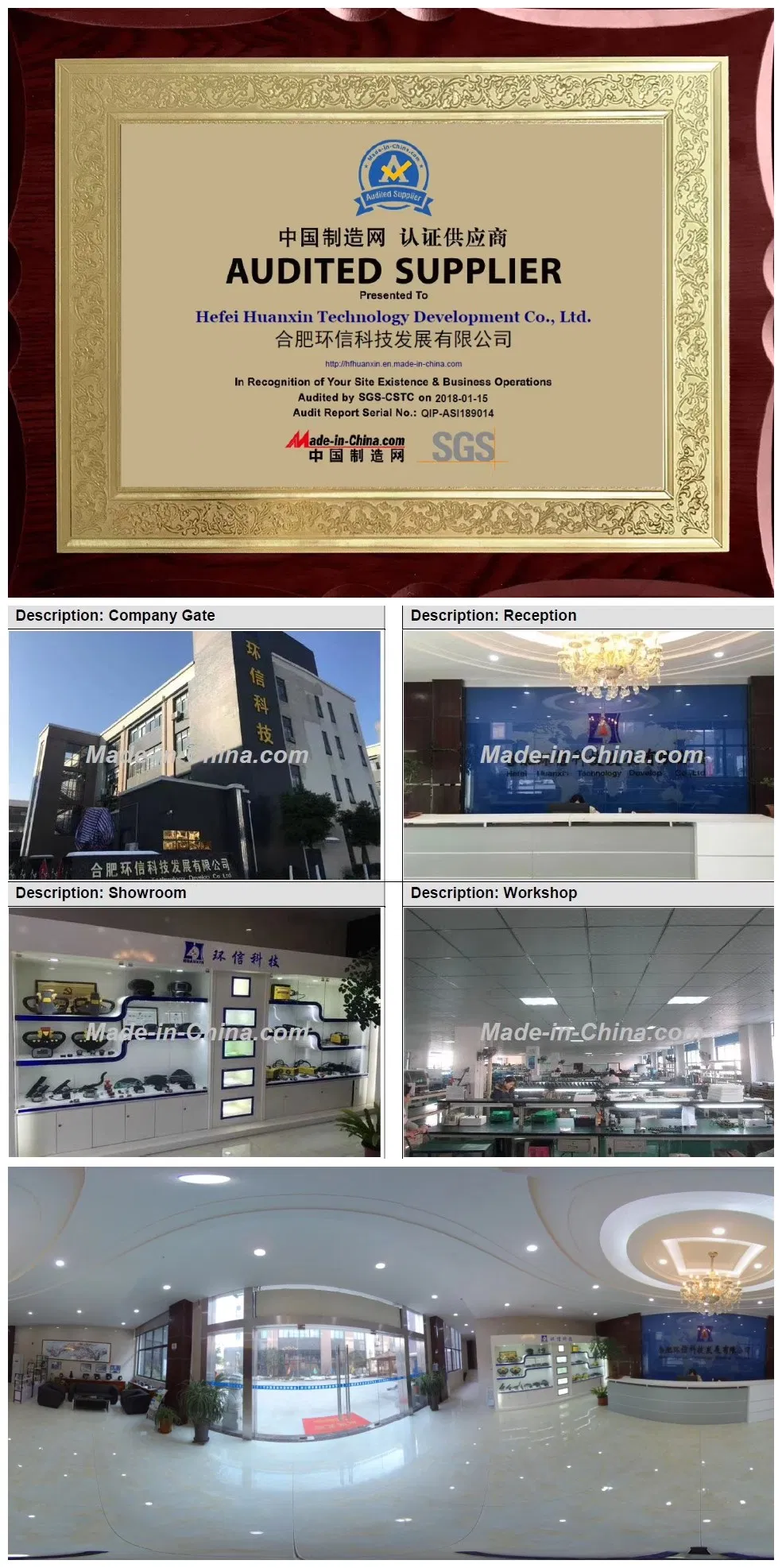

Our Company

Hefei Huanxin Technology Develop Co., Ltd. has been devoting ourselves to developing and manufacturing and other since 2004. We are located in Hefei, Anhui Province, with convenient transportation access. We employ over 101 - 200 People staff members. We have achieved great improvement since our company was founded in 2004. We abide by the motto of First-class quality, Reasonable price, Best service and Professional product support.
4 Person Electric Golf Buggy Use in Golf Course (HX-A2+2)

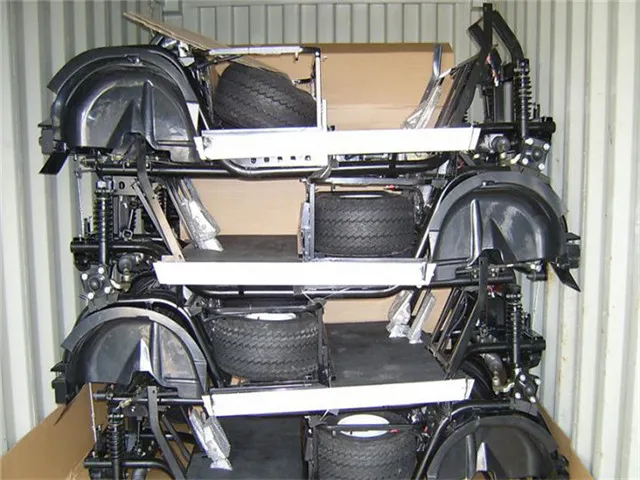

Packaging & Shipping

1.Delivery date: 15 days for mass producing

2. 1*20'GP fit 2 units.1*40'HQ fit 6 units.

3. Asia: 3-7 days to arrive; Other : 15-30 days to arrive.

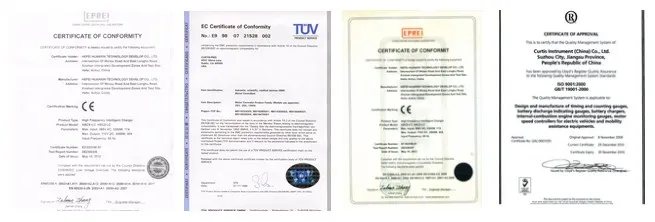

Certification

4 Person Electric Golf Buggy Use in Golf Course (HX-A2+2)

FAQ

Q1. Can I have a sample order?
A: yes, we welcome sample order to test and check quality.

Q2. What about the lead time?
A: Sample needs 3-5 days.

Q3. Do you have any MOQ limit?
A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q6. Is it OK to print my logo on the product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?
A: Yes, we offer 1 year warranty to our products.

Q8: How to deal with the faulty?
A: Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
