128X64dots 0.96′ ′ Inch 4-Wire Serial Interface, I2c Interface SSD1306 OLED LCD Display for Smart Watch

Product Description

PRODUCT DESCRIPTION

128x64 Graphic OLED Display | RYO12864-04-TSDG30P096-A-VER1.0

Module size: 26.7x19.26x1.227mm

Driver: SSD1306

Blue+Yellow Pixels, I2C; 4-wire SPI interface, Wide Temp (-40° to +70° operating/-40° to +85° storage), 3V OLED, RoHS Compliant.

Model Number	RYO12864-04-TSDG30P096-A-VER1.0
Resolution	*12864**
Display color	Yellow/Blue
Drive Duty	1/64 Duty
Dot Patch	*0.170.17mm**
Controller IC	SSD1306
Outline Dimensions	*26.719.261.227mm*
Active Area	*21.7411.20mm**
Viewing Area	*23.7413.2mm**
Interface	6800/8080 interface, IIC port, 4 wire serial interface
Pixel Size	*0.150.15mm**
Operating Temp.	-20°C~+70°C
Storage Temp.	-30°C~+80°C
Number of pins	30 pin

MORE INFORMATION ABOUT OLED DISPLAY

0.96 inch OLED Arduino is very popular application for the 0.96 inch OLED displays, it is also known for 0.96 inch OLED I2C Display, 0.96 inch OLED SPI Display or 0.96 inch OLED 128×64 SPI Display. If need Arduino 0.96 inch OLED I2C example, you can buy the I2C 0.96 inch OLED Display Module to test at first, you can check the 0.96 inch OLED datasheet above, and we can provide the 0.96 inch OLED I2C Arduino library for your projects.

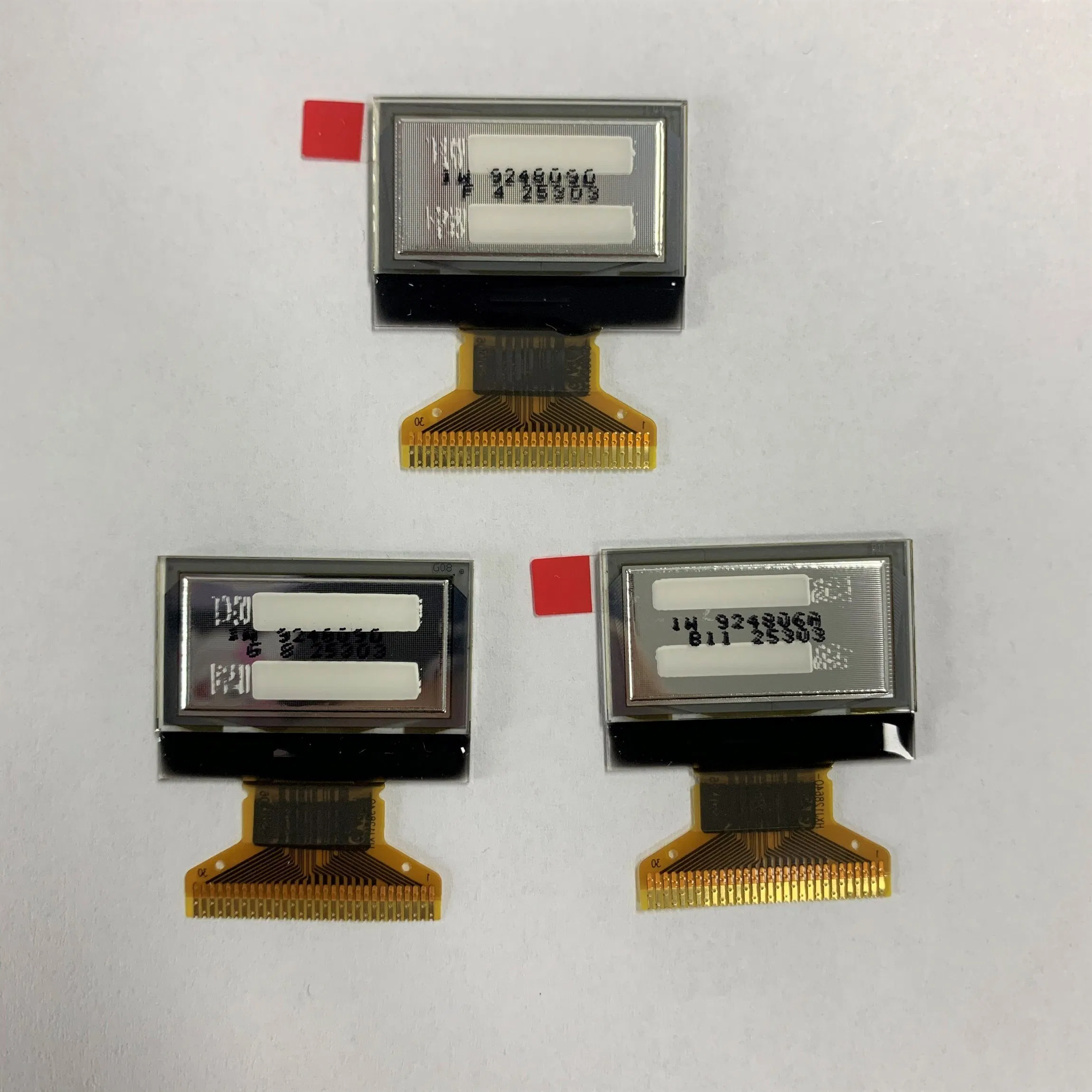

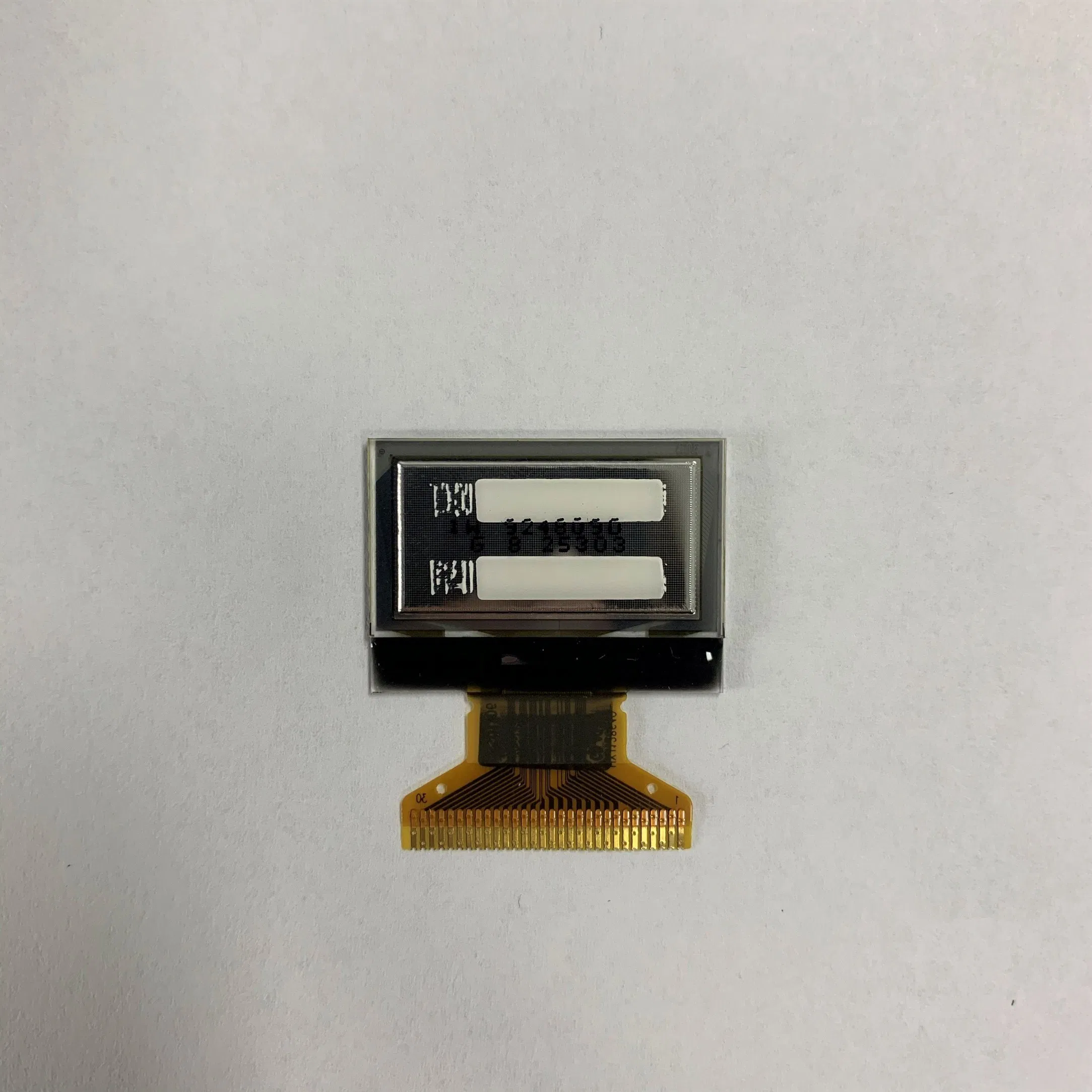

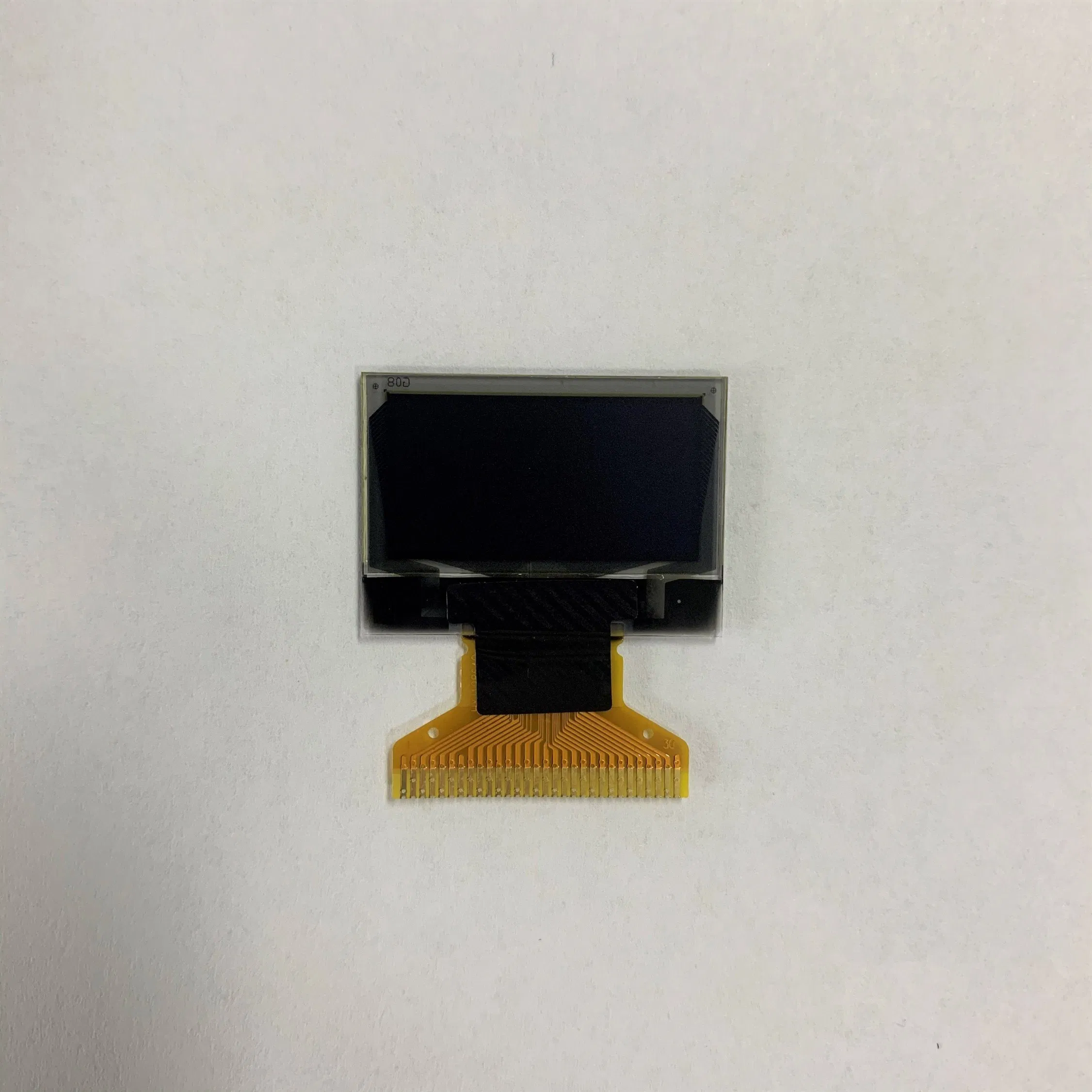

DETAILED IMAGES

PRODUCT APPLICATION

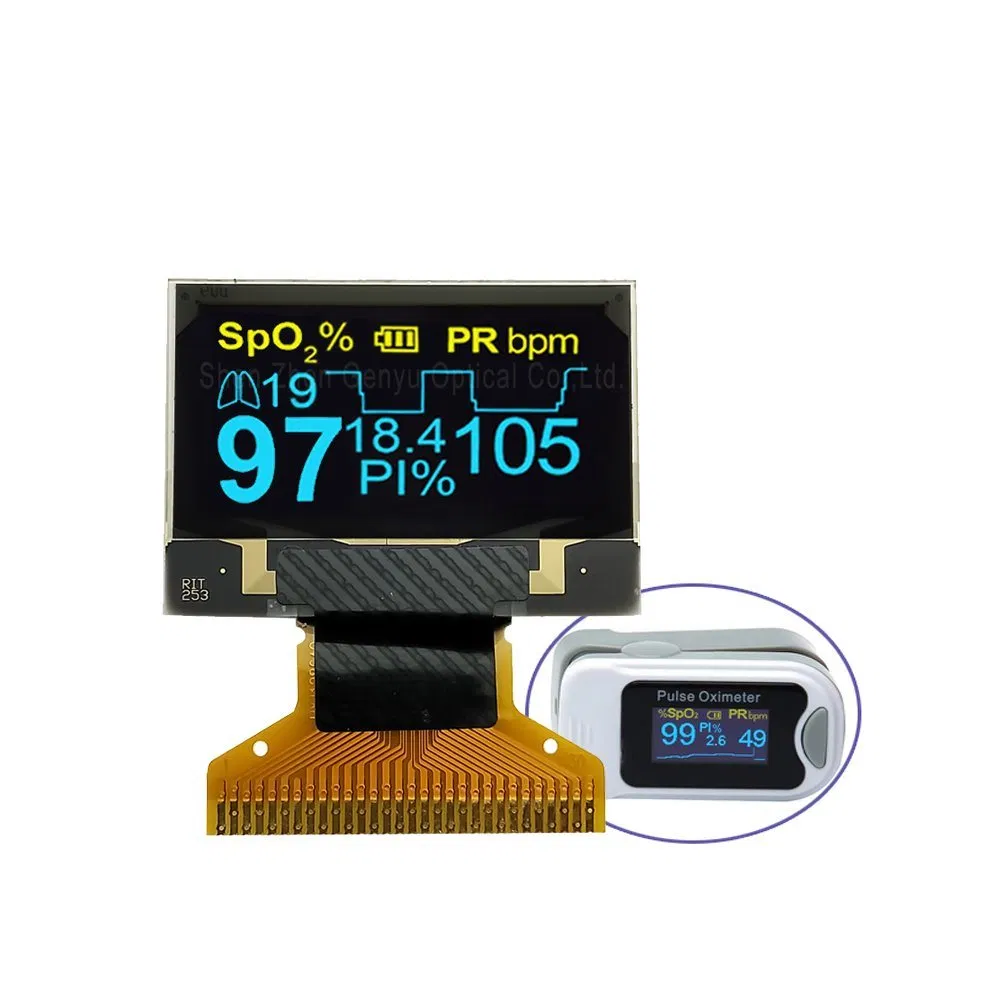

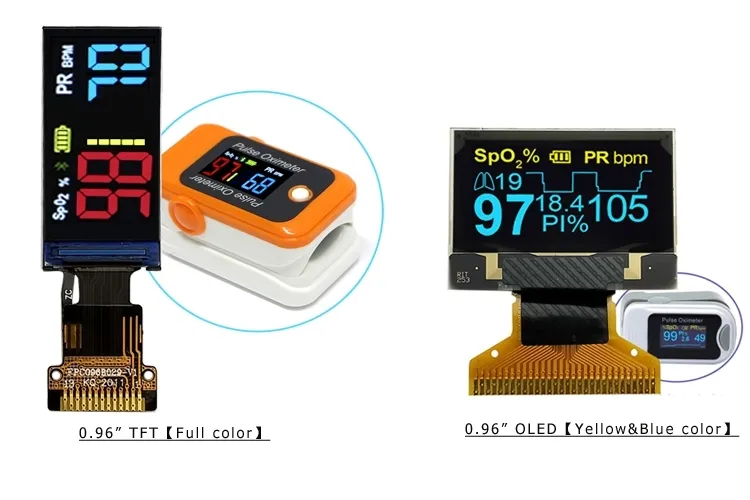

Our 0.96 inch OLED Displays are widely used at consumer and industrial applications such as Audio, Automotive control panels, Medical devices, White goods or Home automation products, Smart Watch, Smart Bracelet, Device, Equipment, Printer, Projector, Scanner, Fax Machine, Copier, Bar Code Printer and etc.

OUR SERVICE ADVANTAGES
1, Quality Control: Every LCD tested with special instruments or main boards before delivery to ensure working. Both Original and High quality OEM products available.

2, Packing: Packed in anti-static bags with foam box to ensure safety in transportation.

3, Payment Terms: T/T, Western Union,L/C, PayPal

4, Shipping Methods: Prompt delivery by UPS, EMS, DHL, TNT, or by air.

5, Service: Best after-sales service to ensure satisfaction from customers.

6, Warranty: Usually, product warranty for one year.

7, Samples: Our company offers samples for quality test or other business purposes, but we kindly ask you to pay for samples and the freight.

8. If mass production has any quality problem, customer can return it.

Feature
1. Low power consumption
2. High brightness and luminous intensity output
3. Easy assembly
4. High intensity and reliability
5. Low voltage and current operation
6. energy saving & long life
7. Solid-state LED chip based
8. Easy mounting on printed circuit board and sockets
9. Rhos&Reach approved
10. Better show effect and wide view angle

FAQ

1. What is the MOQ?
Re: No MOQ for samples,different MOQ requirements for bulk order.

2. What about the delivery time?
Re: For standard product,1 week for samples,4 weeks for bulk order;
For customization,3-4 weeks for samples,4 weeks for mass production after sample confirmation.

3. Is there any warranty for your products?
Re: Yes,we offer 12-month warranty for unartificial defect.

4. What is your shipping method?
Re: We can ship as buyer's requirements,our suggestions:
For small quantity,ship by DHL/Fedex/TNT/EMS Express service,delivery time: 4-6 business days;
For large quantity,ship by sea transaportation or air transportation for saving shipping charge.

5. What is your payment method?
Re: We support make payment via TT/West Union/Paypal,50%-100% deposit in advance and balance before shipping as order amount.

6. Do you offer customization service?
Re: Yes,welcome OEM&ODM,please send us your requirements for assessment.
