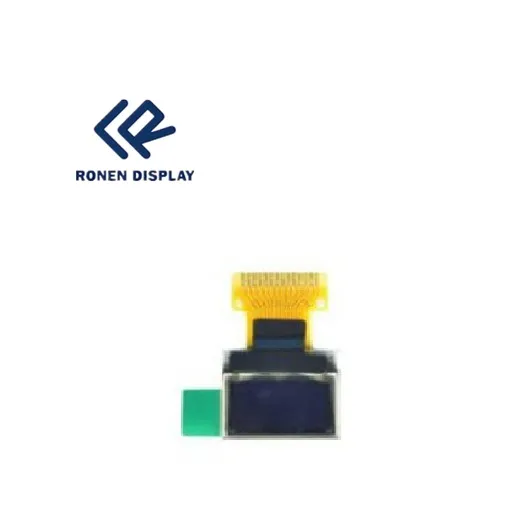

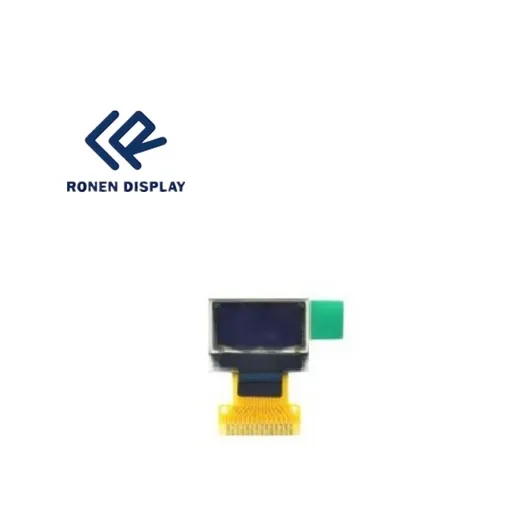

China 0.49" 14 Pin Mono (Blue) OLED 64X32 Display - China OLED and OLED Display price

Product Description

Company Profile:

RONGEN have concentrate on designing and manufacturing display products for more than 12 years.

We can offer monochrome TN/STN, CSTN, TFT and OLED displays and other display components.

Now RONGEN Display Co., LTD is becoming a qualified supplier of many noted companies.Professional technical support and good service is our permanent commitment for you.

Specification:

Diagonal Screen Size	0.49"
Color	Mono
Module Construction	COG
Product	RG-L0049FLL-02
Driving Method	Passive Matrix
Number of Pixels	64×32
Active Area(mm)	11.18×5.58
Panel Size(mm)	14.5×11.6×1.2
Pixel pitch(mm)	0.175×0.175
Pixel Size(mm)	0.155×0.155
Weight	TBD
Duty	0.03125
Pins	14
Color	Monochrome (Blue)
Porwer Supply Voltage	2.6~3.5V
Frame Rate	180 Frames/Sec
Operating Temperature	-30~70ºC
Storage Temperature	-40~80ºC
Drive IC	SSD1306
Brightness	180 (Min) cd/m2
Internal DC/DCEnable	3.5~4.2V
Supplied Externally	8V
Interface	I2C
Folding Ability	Folding Type
Assembly	Soldering
