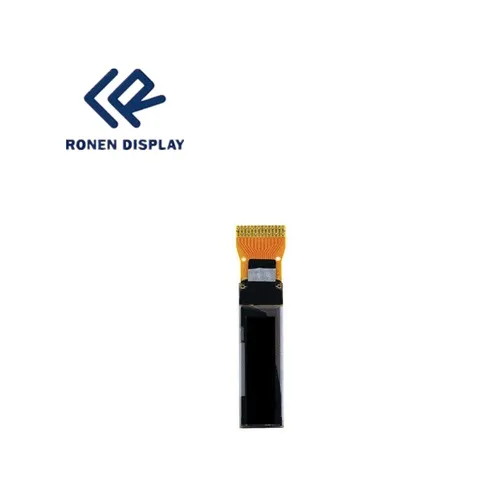

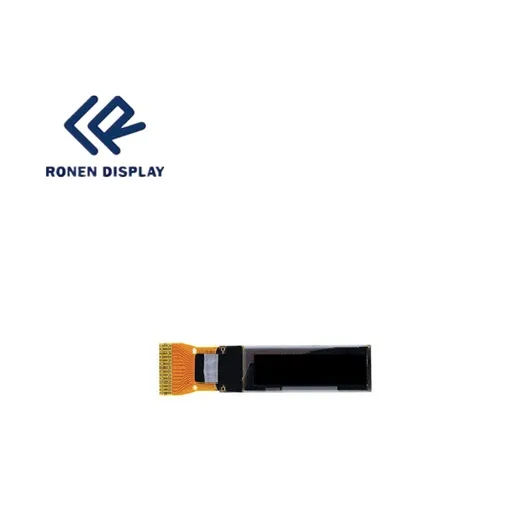

0.69inch 14pin OLED Display with Blue Text 96*16 Resolution
Company Profile:RONGEN have concentrate on designing and manufacturing display products for more than 12 years. We can offer monochrome TN/STN, CSTN, TFT and OLED displays and other display components. Now RONGEN Display Co., LTD is becoming a qualified supplier of many noted companies.Professional ......
Send Inquiry
Product Description
Company Profile:
RONGEN have concentrate on designing and manufacturing display products for more than 12 years.
We can offer monochrome TN/STN, CSTN, TFT and OLED displays and other display components.
Now RONGEN Display Co., LTD is becoming a qualified supplier of many noted companies.Professional technical support and good service is our permanent commitment for you.
Specification:
RONGEN have concentrate on designing and manufacturing display products for more than 12 years.
We can offer monochrome TN/STN, CSTN, TFT and OLED displays and other display components.
Now RONGEN Display Co., LTD is becoming a qualified supplier of many noted companies.Professional technical support and good service is our permanent commitment for you.
Specification:
| Diagonal Screen Size | 0.69" |
| Color | Mono |
| Driving Method | Passive Matrix |
| Number of Pixels | 96×16 |
| Active Area(mm) | 17.26×3.18 |
| Panel Size(mm) | 26.3×8×1.2 |
| Pixel pitch(mm) | 0.18×0.2 |
| Pixel Size(mm) | 0.16×0.18 |
| Weight | TBD |
| Duty | 0.0625 |
| Pins | 14 |
| Color | Monochrome(Blue) |
| Porwer Supply Voltage | 2.6~3.5V |
| Frame Rate | 140 Frames/Sec |
| Operating Temperature | -30~70ºC |
| Storage Temperature | -40~80ºC |
| Drive IC | SSD1306 |
| Brightness | 120 (Min) cd/m2 |
| Internal DC/DCEnable | 3.3~4.2V |
| Supplied Externally | 7.25V |
| Interface | I2C |
| Folding Ability | Folding Type |
| Assembly | Soldering |
