China 0.71" 48X64 Monochrome (White) OLED Display Module 14pin, Iic Interface - China Mini OLED Display and Small OLED Screen price

Product Description

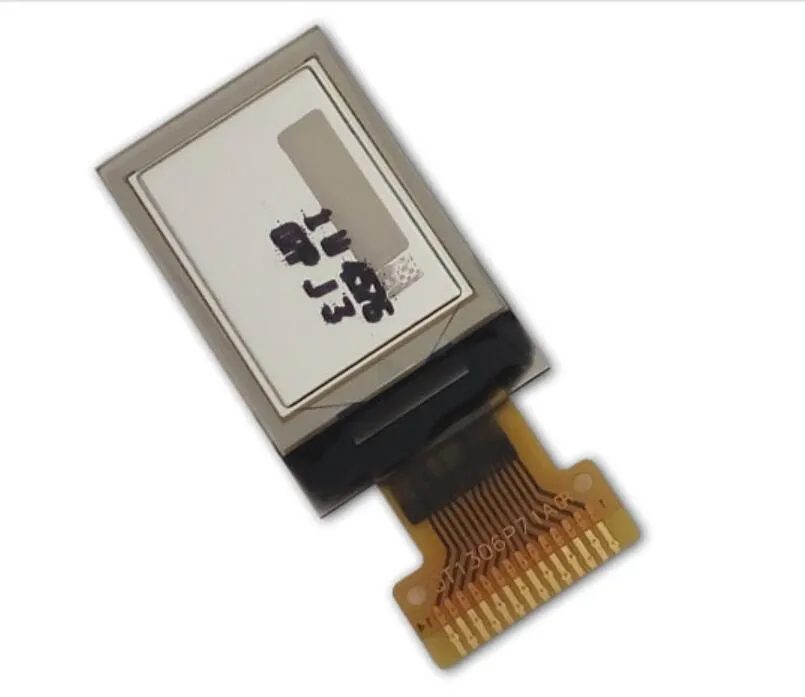

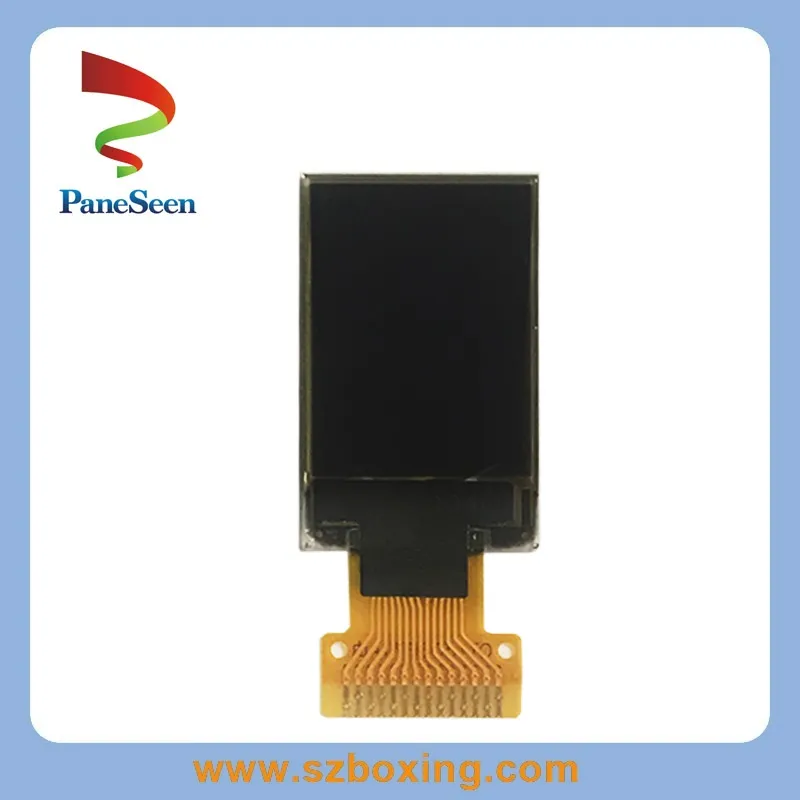

0.71" 48x64 Passive Matrix Monochrome (White) oled display module 14pin IIC

Display Specifications:

1.Display Mode: Passive Matrix
2.Display Color: Monochrome(White)
3.Drive Duty: 1/64 Duty

Mechanical Specifications:

1.Outline Drawing: According to the annexed outline drawing
2.Number of Pixels: 48*64
3.Panel Size: 13.9*22*1.2mm
4.Active Area: 10.54*14.7 mm
5.Pixel Pitch: 0.18*0.2 mm
6.Pixel Size: 0.16*0.18 mm
7.Weight: TBD

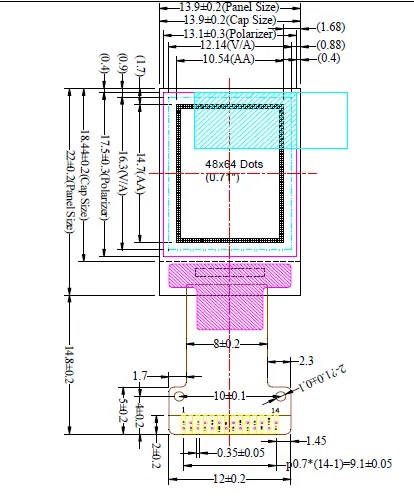

Drawing

0.71" 48X64 Monochrome (White) OLED Display Module 14pin, Iic Interface

Company Advantages

1. ISO9001 certificated,Factory Direct Supplied

2. RoHs Compliant,Lead Free,Reach Compliant

3.Competitive Price and Short Lead-Time

4.Professional Team with Rich Experiences in Design/Mfg/Quality Control

5.Small MOQ Support&Fast Response to Customers

6.Long Product Life Time

0.71" 48X64 Monochrome (White) OLED Display Module 14pin, Iic Interface

^FAQ:

Q:What is the MOQ?
A: Generally if you choose the different products,our minimum order qty also will be different.

Q: What about the delivery time?
A: The LCD products need 5-6 weeks to be made after receive deposit.

Q: Does your product have any warranty?
A: Yes,we offer 12 months warranty for our products.Damage due to misuse,ill treatment and unauthorized modifications and repairs are not covered by our warranty.

Q:What's your payment method?
A: We usually accept the payment methods include T/T,western Union and Trade Assurance.50-100% deposit in advance and balance before shipping upon the payment amount.Buyer can choose which payment ways that you accept.

Q:What's your shipping method?
A: We provide comprehensive shipping methods.
For small quantity orders we ship by UPS Air-Express,or DHL/FEDEX/TNT/EMS Express service,it is safe and fast.
For large quantity orders we ship by buyer's cargo agent in China,we can also ship by Air transportation or sea transportation.

Q:Do you offer custom solution?
A:Yes,we can offer custom solution if standard products couldn't meet buyer' requirements.

If you have any new inquiry,pls contact with us freely!
