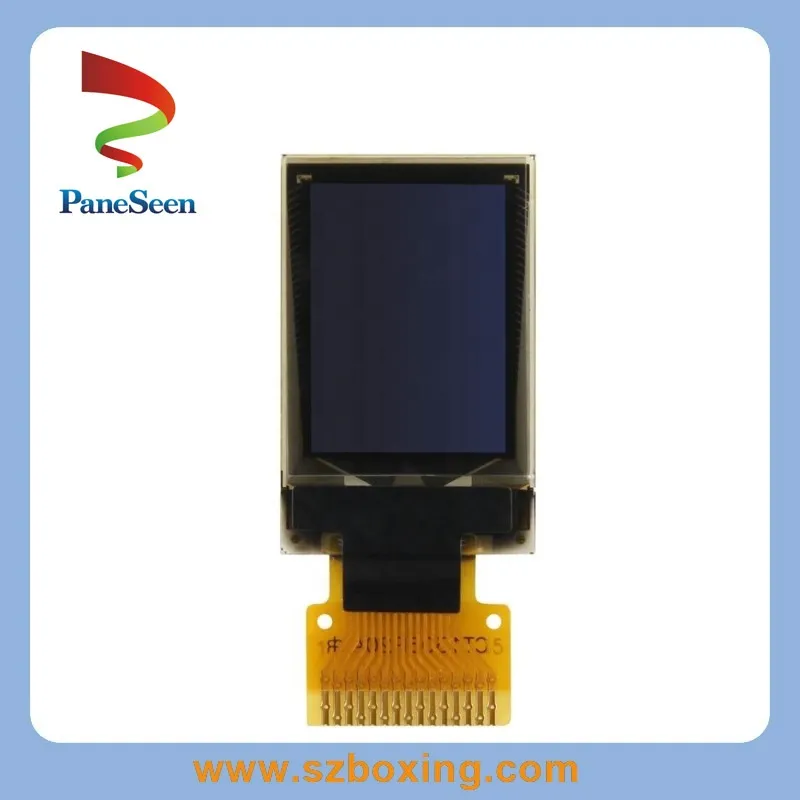

0.71" 48X64 Passive Matrix Monochrome (White) Oel Display Module OLED 15pin 4-Wire Spi
0.71" 48x64 Passive Matrix Monochrome (White) OEL display module OLED 15pin 4-wire SPI1. General SpecificationsThe PS4864TSWEG04 is a 0.71 inch diagonal PM-OLED display panel product, itself emitting, without touch screen. It features an operating temperature range of -40 ~ 70°C , a sto......
Send Inquiry
Product Description
0.71" 48x64 Passive Matrix Monochrome (White) OEL display module OLED 15pin 4-wire SPI
1. General Specifications
The PS4864TSWEG04 is a 0.71 inch diagonal PM-OLED display panel product, itself emitting, without touch screen. It features an operating temperature range of -40 ~ 70°C , a storage temperature range of -40 ~ 85°C . It's general features are summarized in the following: Wide Temperature, Matte . Based on its features, we recommend that this model be applied to Handheld & PDA, Wearable etc. Built-in SSD1306 driver IC.
2. Optical Specifications
3. Drawing picture
4. Application
Electronic Cigarette Vapor Storm, Handheld & PDA, Smart Watch, Smart Card, and Devices which require small and thin displays
1. General Specifications
The PS4864TSWEG04 is a 0.71 inch diagonal PM-OLED display panel product, itself emitting, without touch screen. It features an operating temperature range of -40 ~ 70°C , a storage temperature range of -40 ~ 85°C . It's general features are summarized in the following: Wide Temperature, Matte . Based on its features, we recommend that this model be applied to Handheld & PDA, Wearable etc. Built-in SSD1306 driver IC.
| Item | Specifications |
| PN / Model | PS4864TSWEG04 |
| Diagonal Size | 0.71 inch |
| Type | PM-OLED , OLED |
| Pixel Format | 48*64 |
| Active Area(W×H) | 10.54*14.7 mm |
| Interface | 4 wire SPI |
| Outline Dim. | 13.9*22*1.2 mm |
| Display color | White |
| Luminance | 120 cd/m² (Typ.) |
| Contrast Ratio | 2000:1 |
| Viewing Angle | ALL |
| Weight | --g (Typ.) |
| Touch Panel | Without |
| D-IC Detail | COG Built-in SSD1306 |
| Interface Type | IIC, 15 pins FPC |
| Environment | Operating Temperature: -40 ~ 70 °C Storage Temperature: -40 ~ 85 °C |

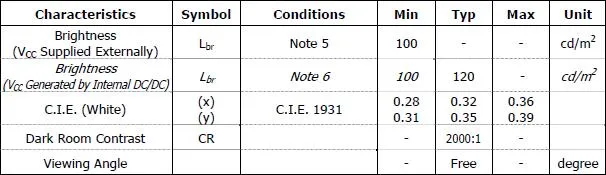

2. Optical Specifications

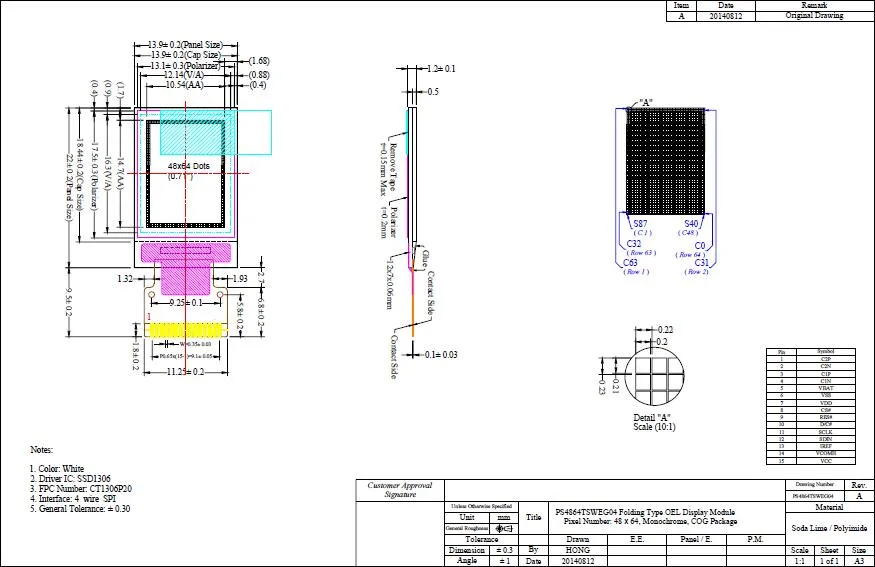

3. Drawing picture
4. Application
Electronic Cigarette Vapor Storm, Handheld & PDA, Smart Watch, Smart Card, and Devices which require small and thin displays
