0.96 Inch Mono (White) OLED Display with 128X64 Pixels
Product Descriptions: RG P/NRG-L0096DLL-01Driving Method Passive MatrixNumber of Pixels128×64Active Area(mm)21.744×10.864Panel Size(mm)26.70×19.26×1.45Pixel pitch(mm)0.17×0.17Pixel Size(mm)0.154×0.154Duty1/64Pins30ColorMonochrome (Whit......
Send Inquiry
Product Description
Product Descriptions:
| RG P/N | RG-L0096DLL-01 | |
| Driving Method | Passive Matrix | |
| Number of Pixels | 128×64 | |
| Active Area(mm) | 21.744×10.864 | |
| Panel Size(mm) | 26.70×19.26×1.45 | |
| Pixel pitch(mm) | 0.17×0.17 | |
| Pixel Size(mm) | 0.154×0.154 | |
| Duty | 1/64 | |
| Pins | 30 | |
| Color | Monochrome (White) | |
| Porwer Supply Voltage | 2.6~3.5V | |
| Frame Rate | 100 Frames/Sec | |
| Operating Temperature | -30~70ºC | |
| Storage Temperature | -40~80ºC | |
| Drive IC | SSD1306 | |
| Brightness | 150 (Min) cd/m2 | |
| Driving Voltage | Internal DC/DCEnable | 3.3~4.2V |
| Supplied Externally | 9V | |
| Interface | Parallel /I2C/ 4-wire SPI | |
| Folding Ability | Folding Type | |
| Assembly | Soldering | |

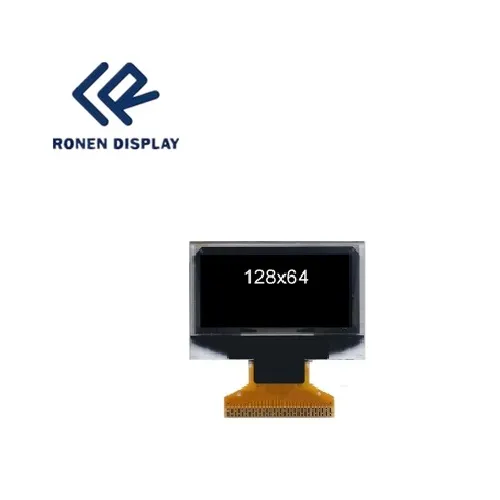

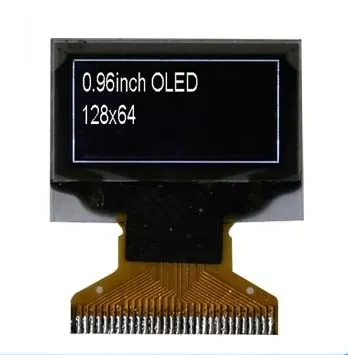

Product Image:
