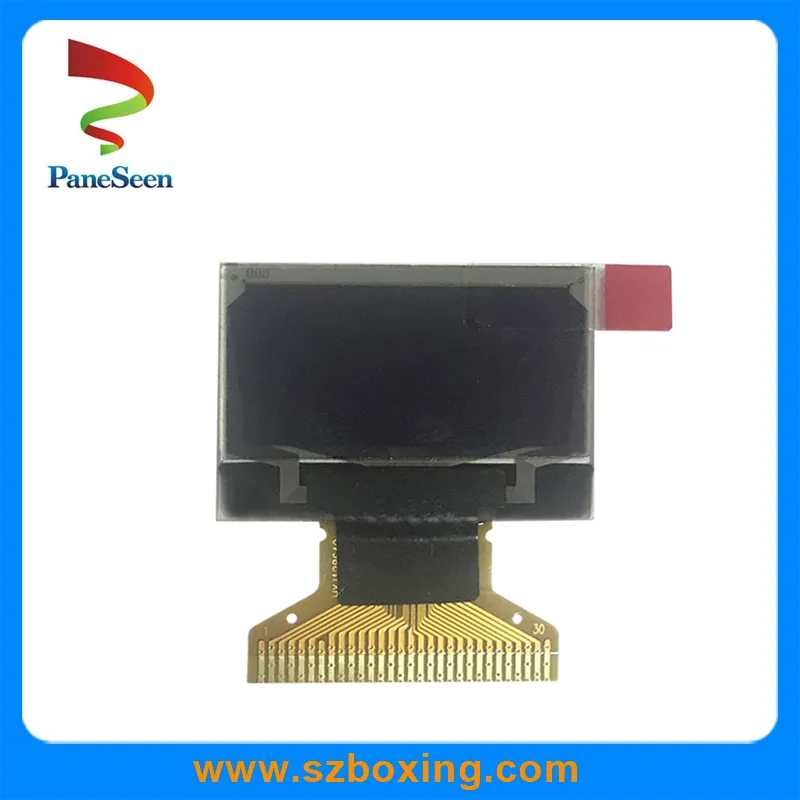

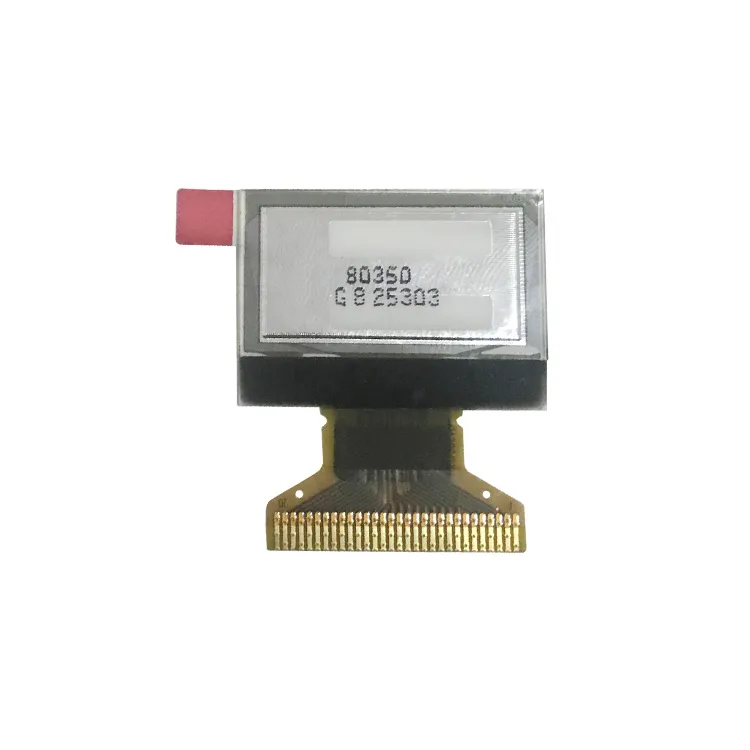

0.96 Inch Mono OLED Display with Yellow Blue Color 128*64 Dots for Smart Controller
0.96 Inch Mono OLED Display with yellow blue color 128*64 Dots for Smart ControllerGeneral Information:1) Display Mode: Passive Matrix 2) Display Color: Monochrome (Blue) 3) Drive Duty: 1/64 Duty Mechanical Specifications 1) Outline Drawing: According to the annexed outline drawing 2) Number of Pixe......
Send Inquiry
Product Description
0.96 Inch Mono OLED Display with yellow blue color 128*64 Dots for Smart Controller
General Information:
1) Display Mode: Passive Matrix
2) Display Color: Monochrome (Blue)
3) Drive Duty: 1/64 Duty
Mechanical Specifications
1) Outline Drawing: According to the annexed outline drawing
2) Number of Pixels: 128*64
3) Panel Size: 26.70 * 19.26*1.4 (mm)
4) Active Area: 21.744 * 10.864 (mm)
5) Pixel Pitch: 0.17 * 0.17 (mm)
6) Pixel Size: 0.154* 0.154 (mm)
7) Weight: 1.54 (g)

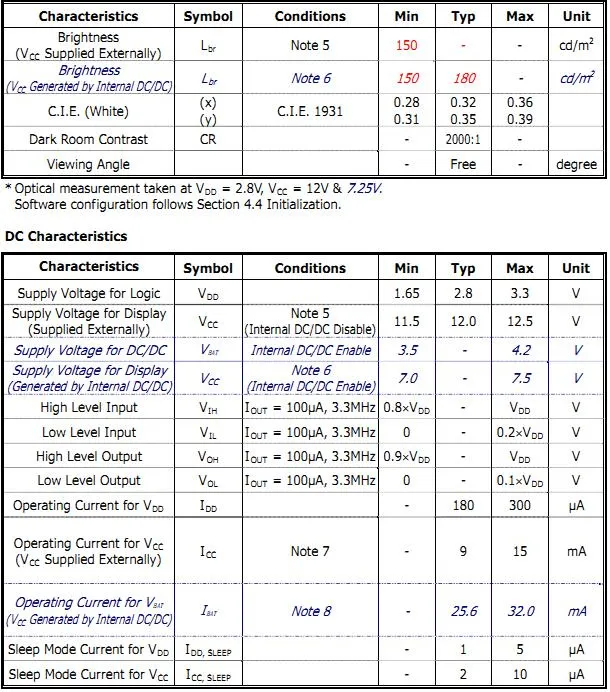

Optical Characteristics

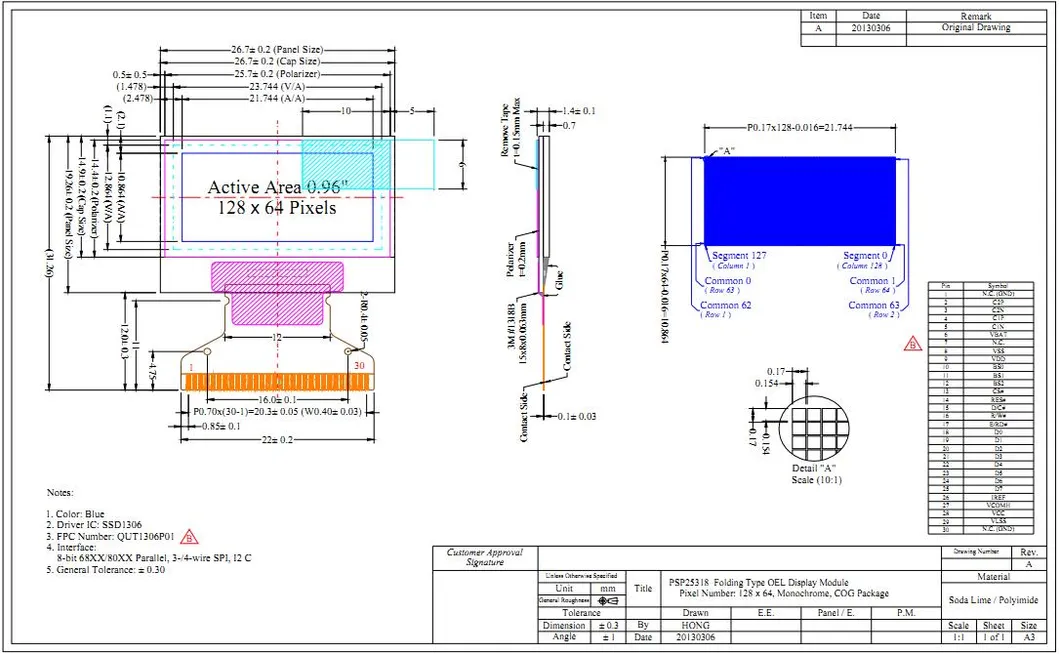

Product Drawing
Application:
Smart home, IOT device
Company Advantage:
* Small MOQ accepted
*Competitive price and short lead-time.
*ISO9001 and ROSH certificated factory-supplied.
*TFT LCD module, touch panel, PCB with SMT/COB solutions
· Quality Control:
Our technicians and QC team test the original products one by one to ensure every product is perfect before package and shipment!
We will test goods strictly according to our standard inspection before shipment.
If exceed this standard, clients can ask for returning and get new.
· Packaging and Delivery:
1). Payment Terms: T/T, Paypal
2). Shipping: Prompt delivery by UPS, EMS, DHL, TNT, FedEx, or by air.
3). Delivery time: 7-10 days for goods in stock, 3-4 weeks for mass production goods.
4). Packaging Details: Packed in anti-static bags with foam boxes to ensure safety in transportation.
5). Delivery Details: 1 to 30 days. The delivery fee is up to the weight and volume of the products.
6). Samples: Our company offers samples for quality tests or other business purposes, but we kindly ask you to pay for samples and the freight.
