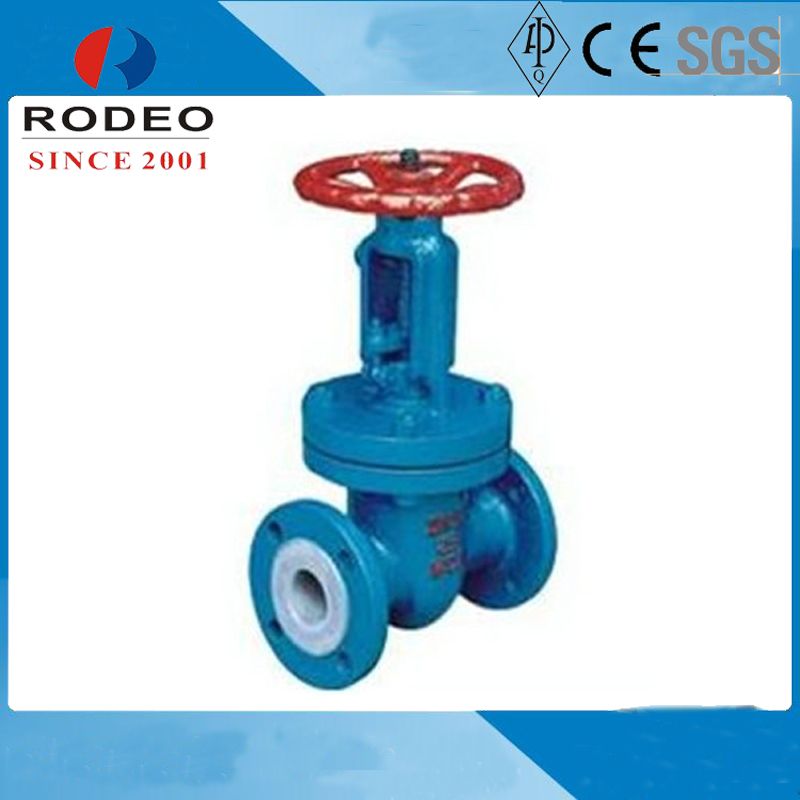

China API Stainless Steel 316 Manual Fluorine Lining Gate Valve

Product Description

Description

RODEO can offer almost full range of this series product. For easy site maintenance services
gate valve with silver primer coating. Allows for a large flow rate
and little head loss/pressure drop across the valve due to the full bore design and recess
for the disc to sit in when fully open. Designed to BS 1868, flanges according to ASME/ANSI B16.5,
face to face according to ASME B16.10, testing and inspection according to API598. Ideally suited for liquid fuels, diesel and oils.

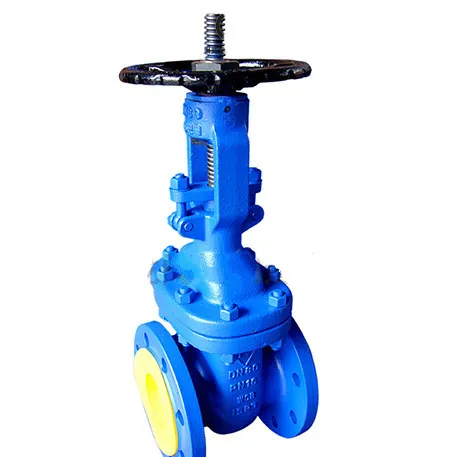

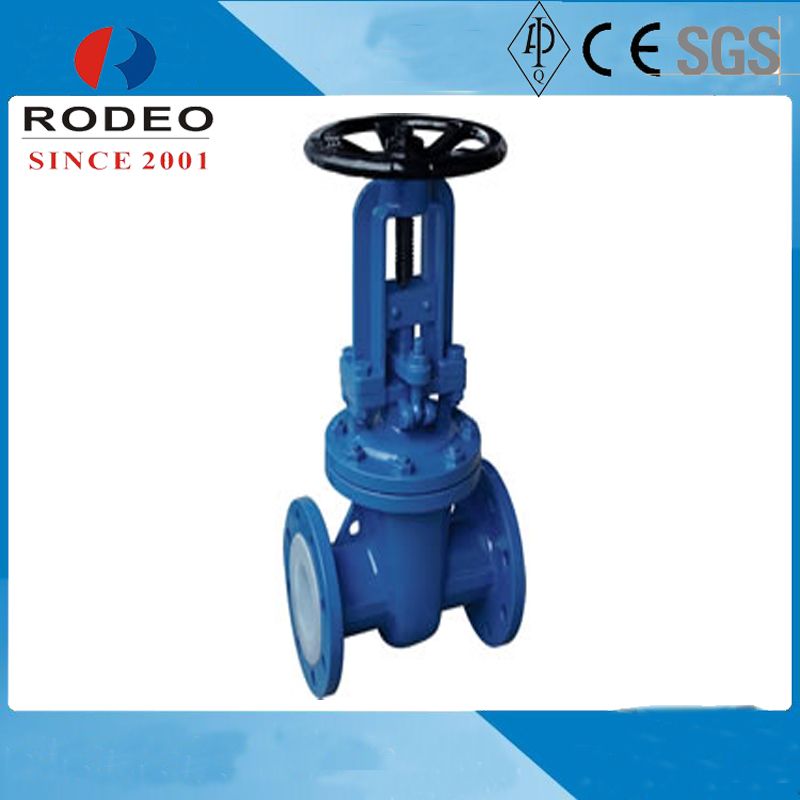

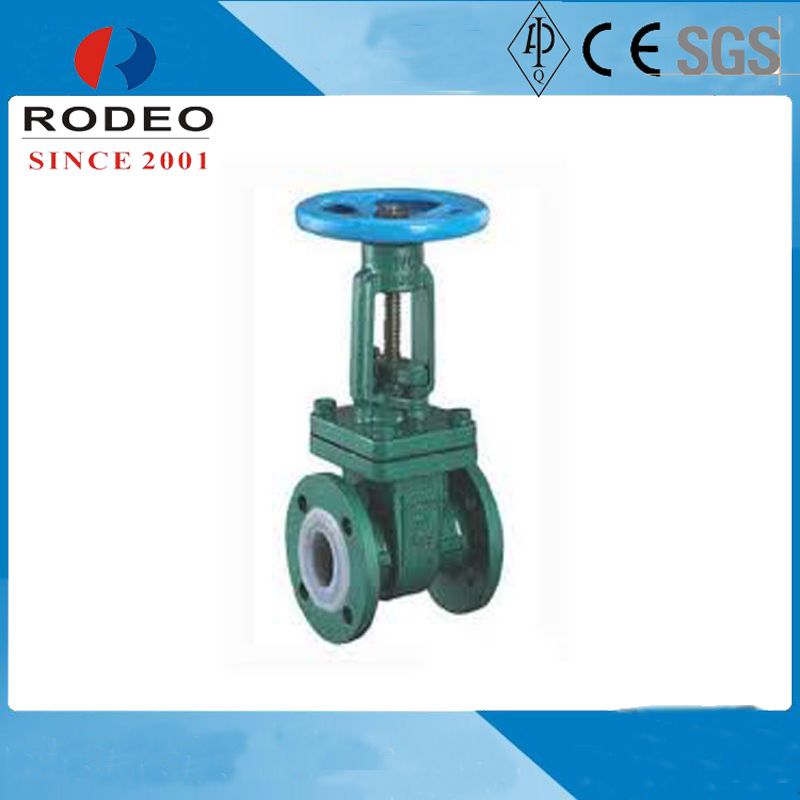

API Stainless Steel 316 Manual Fluorine Lining Gate Valve

API Stainless Steel 316 Manual Fluorine Lining Gate Valve

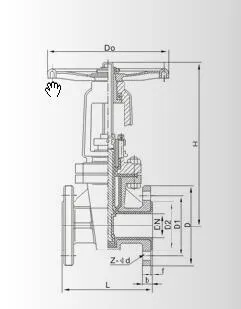

DN(mm)	L	D	D1	D2	f	Do	H	Kg
DN(mm)	PN1.0MPa
25	160	115	85	65	3	140	230	6.5
32	180	140	100	78	3	160	250	11
40	200	150	110	85	3	180	290	13
50	250	165	125	100	3	200	320	19
65	265	185	145	120	3.5	240	350	23
80	280	200	160	135	3.5	280	410	28
100	300	220	180	155	3.5	300	440	38
125	325	250	210	185	4	320	520	43
150	350	285	240	210	4	360	620	60
200	400	340	295	265	4	400	730	98
250	450	395	350	320	4.5	450	900	200
300	500	445	400	368	4.5	500	970	250
350	550	505	460	428	5	500	1230	360
400	600	565	515	482	5	550	1410	440
450	650	615	565	532	5	600	1550	550
500	700	670	620	585	5	640	1630	910
PN1.6MPa
25	160	115	85	65	3	140	230	6.5
32	180	140	100	78	3	160	250	11
40	200	150	110	85	3	180	290	13
50	250	165	125	100	3	200	320	19
65	265	185	145	120	3.5	240	350	23
80	280	200	160	135	3.5	280	410	28
100	300	220	180	155	3.5	300	440	38
125	325	250	210	185	4	320	520	43
150	350	285	240	210	4	360	620	60
200	400	340	295	265	4	400	730	98
250	450	405	355	320	4.5	450	900	205
300	500	460	410	375	4.5	500	970	255
350	550	520	470	435	4.5	500	1230	370
400	600	580	525	485	5	550	1410	450
450	650	640	585	545	5	600	1550	765
500	700	715	650	608	5	640	1630	930

Advantages

1,With 17 years experience of valves.
2,Each valve has 18 months guarantee period
3,2 times test pressure before valve leave factory.
4,We serve OEM customers from more than 54 countries.
5,Small qty is ok.
6,SGS audited.
7,ISO certificate.

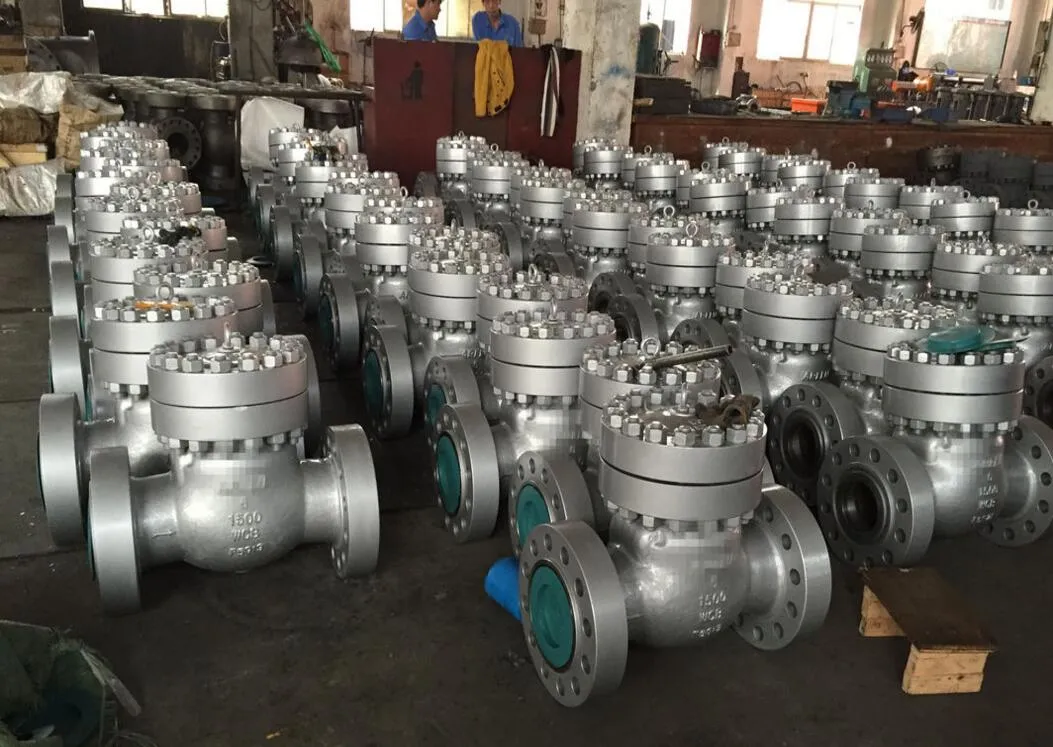

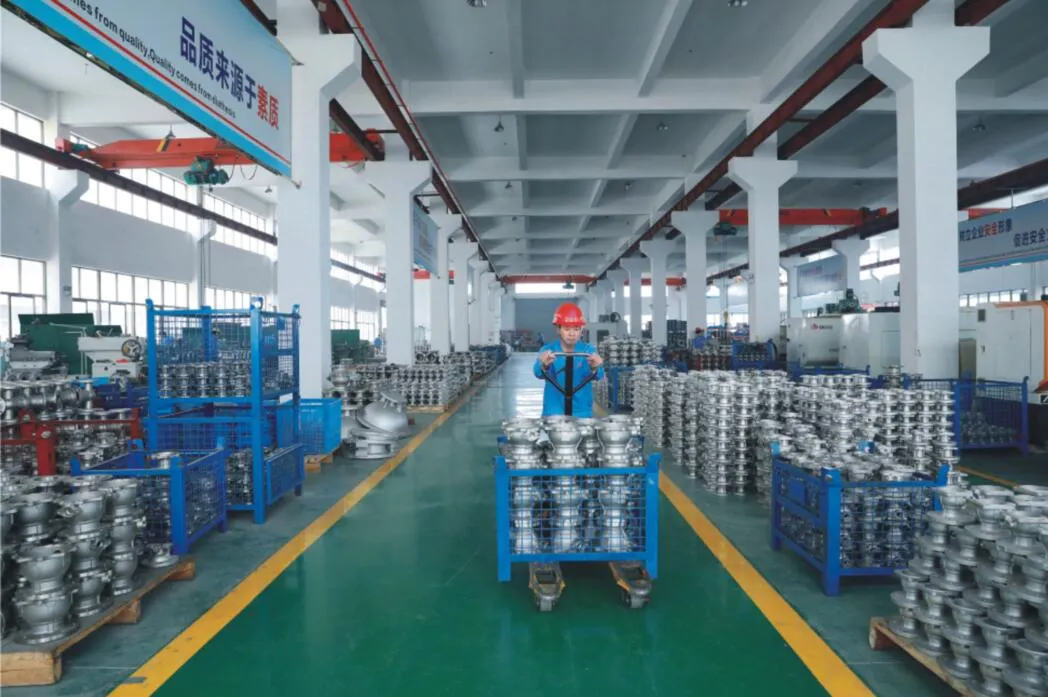

The Factory
API Stainless Steel 316 Manual Fluorine Lining Gate Valve

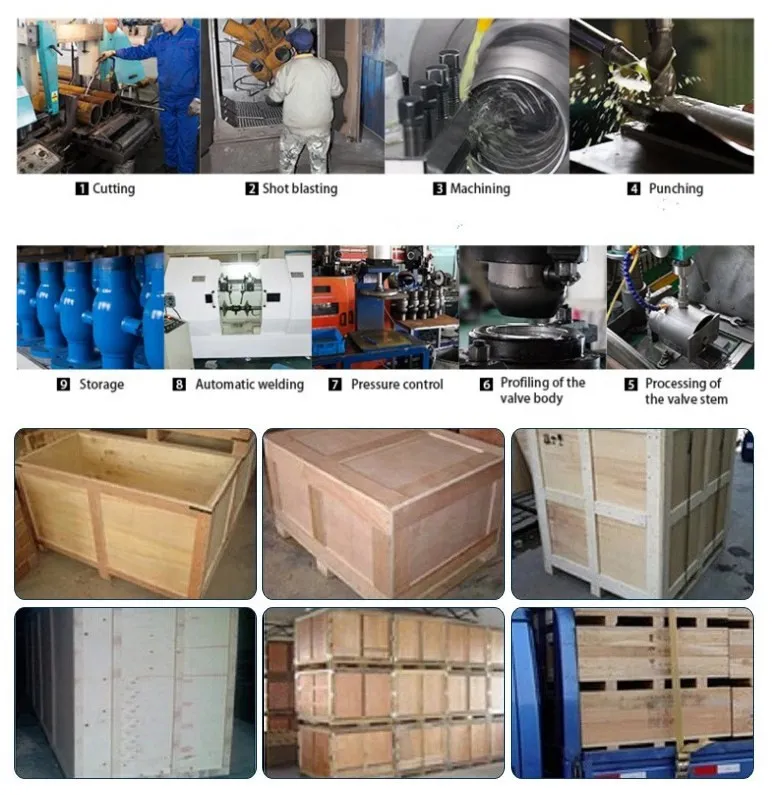

Production Process & Packaging & Shipping
API Stainless Steel 316 Manual Fluorine Lining Gate Valve

Call our sales department at 0086-21-58392279 with any questions that you have about our valves. You may also email us.
As a global valve manufacturer andsupplier, we are committed to the highest industry standards and client satisfaction.
