Cast Steel Screw End 200wog with Wheel Handle Gate Valve
Description RODEO can offer almost full range of this series product. For easy site maintenance servicesgate valve with silver primer coating. Allows for a large flow rateand little head loss/pressure drop across the valve due to the full bore design and recessfor the disc to sit in when fully open......
Send Inquiry
Product Description
Description
RODEO can offer almost full range of this series product. For easy site maintenance services
gate valve with silver primer coating. Allows for a large flow rate
and little head loss/pressure drop across the valve due to the full bore design and recess
for the disc to sit in when fully open. Designed to BS 1868, flanges according to ASME/ANSI B16.5,
face to face according to ASME B16.10, testing and inspection according to API598. Ideally suited for liquid fuels, diesel and oils.
Pipe Thread :ASME B1.20.1 BS21/2779
DIN 2999/259 ISO228/1
JIS B0230 ISO7/1
Investment Casting Body
Metal Sealing:metallic seal
Inspection & Testing :API 598
Advantages
1,With 17 years experience of valves.
2,Each valve has 18 months guarantee period
3,2 times test pressure before valve leave factory.
4,We serve OEM customers from more than 54 countries.
5,Small qty is ok.
6,SGS audited.
7,ISO certificate.

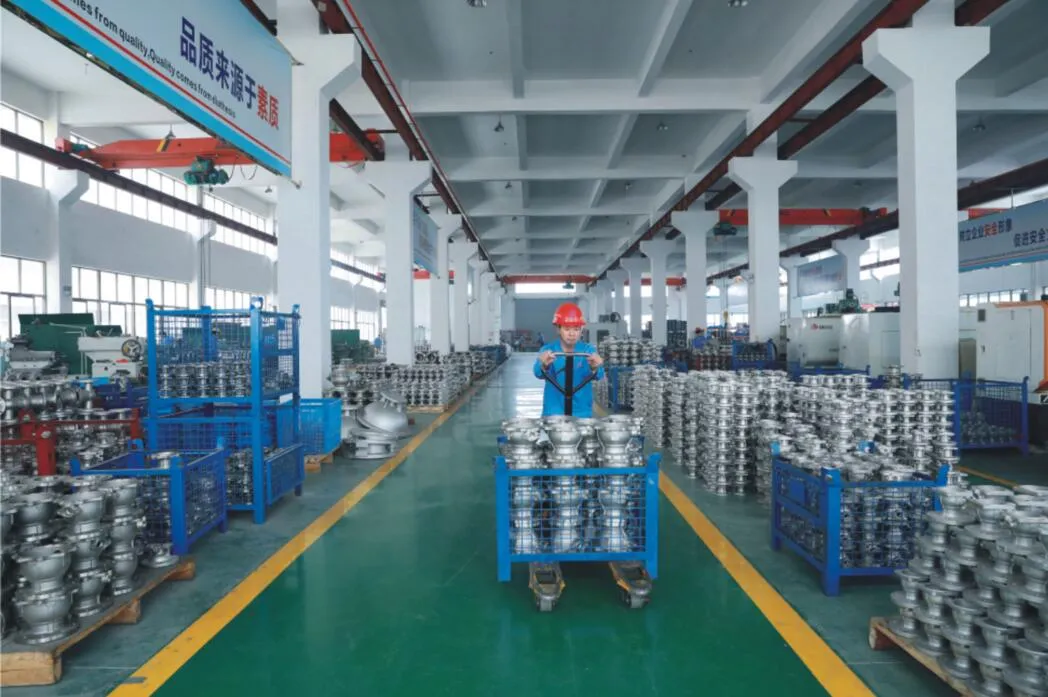

The Factory

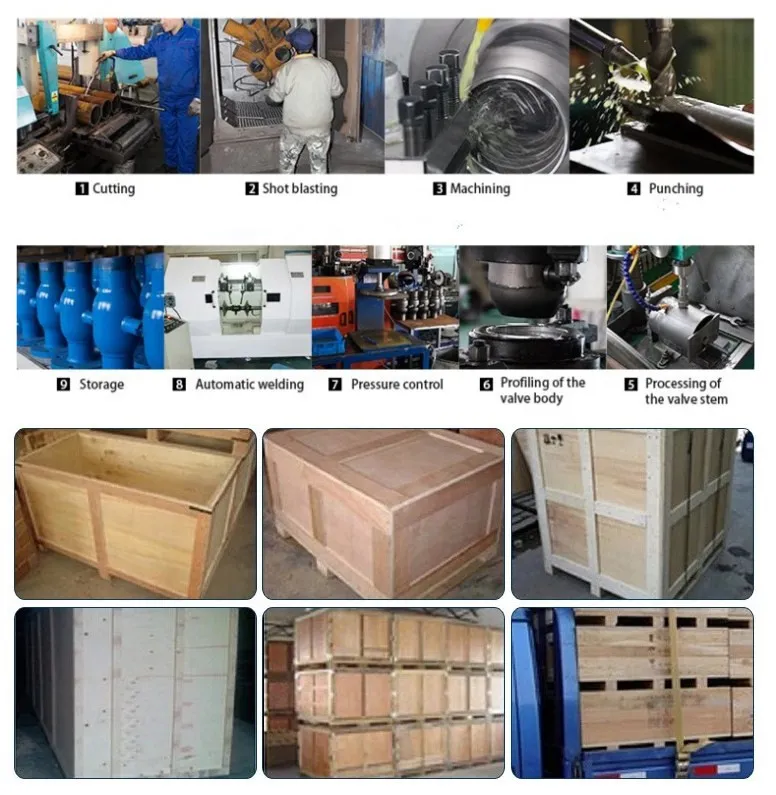

Production Process & Packaging & Shipping
Call our sales department at 0086-21-58392279 with any questions that you have about our valves. You may also email us.
As a global valve manufacturer andsupplier, we are committed to the highest industry standards and client satisfaction.
RODEO can offer almost full range of this series product. For easy site maintenance services
gate valve with silver primer coating. Allows for a large flow rate
and little head loss/pressure drop across the valve due to the full bore design and recess
for the disc to sit in when fully open. Designed to BS 1868, flanges according to ASME/ANSI B16.5,
face to face according to ASME B16.10, testing and inspection according to API598. Ideally suited for liquid fuels, diesel and oils.
Pipe Thread :ASME B1.20.1 BS21/2779
DIN 2999/259 ISO228/1
JIS B0230 ISO7/1
Investment Casting Body
Metal Sealing:metallic seal
Inspection & Testing :API 598

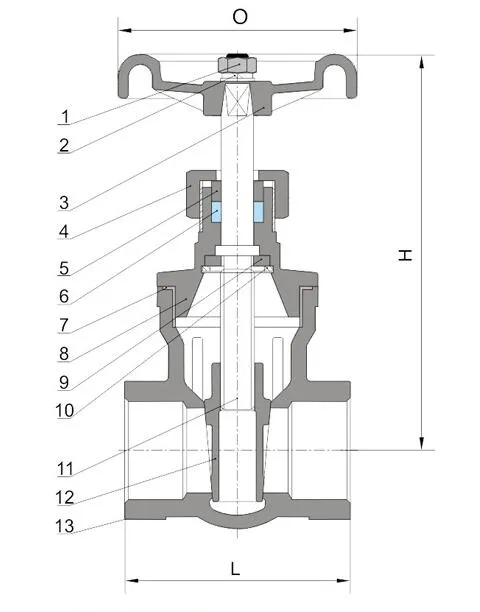

| Size | L | H | O |
| 1/2" | 56 | 96 | 70 |
| 3/4" | 62 | 102 | 70 |
| 1" | 65 | 114 | 70 |
| 1 1/4" | 78 | 132 | 7 |
| 1 1/2" | 88 | 145 | 97 |
| 2" | 98 | 170 | 97 |
| 2 1/2" | 120 | 210 | 126 |
| 3' | 130 | 237 | 126 |
